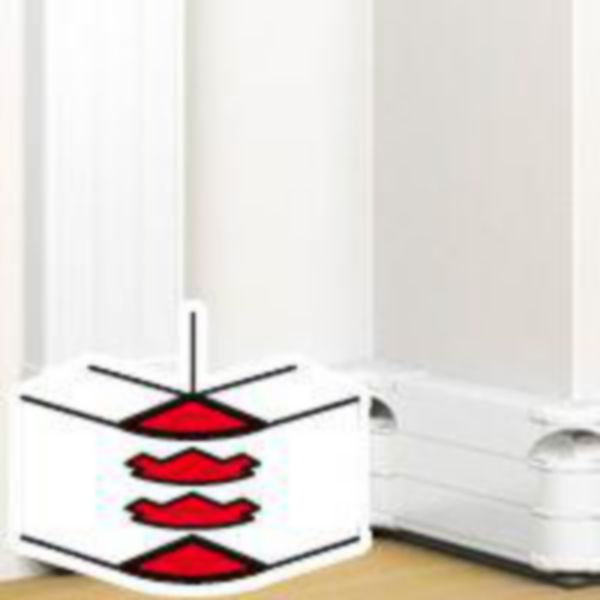

Variable external angle for snap-on trunking 50x180mm

DLP LEGRAND

Variable external angle for snap-on trunking 50x180mm

REF. 075636 EAN. 3245060756369
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Variable external angle of 85 to 120 degrees
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Composed with 2 elements for trunking 1 compartment, or 3 elements for trunking 2 compartments with partition junction
  • Colour: white

The product's benefits

Installation
  • Clippes directly on the body of the trunking
Usage
  • The external angles ensure the continuity of the flexible cover on the angles, hence preventing cut of cover and being aesthetic

Technical characteristics

Width 92 mm
Depth 50 mm
Number of covers 0
Cover width 1 0 mm
Cover width 2 0 mm
Cover width 3 0 mm
Symmetric Yes
Model Base unit
Angle 85-120 °
Material Plastic
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Colour White
RAL-number 9003
With protective foil No
With duct connector No
Bottom perforation No
Mounting method cover Inner lying
With cable fixing clip No
Height 110 mm

Documentation

3 documents
Instruction Use
LE01002AB.pdf pdf (0.43 Mo)
Technical Sheet
F00886FR-04.pdf pdf (1.06 Mo)
Technical Sheet
F00886EN-06.pdf pdf (1 Mo)
2 documents
Catalogue Technical Page
ex223001_1066-1067.pdf pdf (0.17 Mo)
Catalogue Commercial Page
ex223001_1061.pdf pdf (0.13 Mo)
3 documents
BIM Data
BIM Data
BIM Data
2 documents
PEP
LGRP-01604-V02.01-EN.pdf pdf (0.74 Mo)
PEP
LGRP-01604-V02.01-FR.pdf pdf (0.71 Mo)
