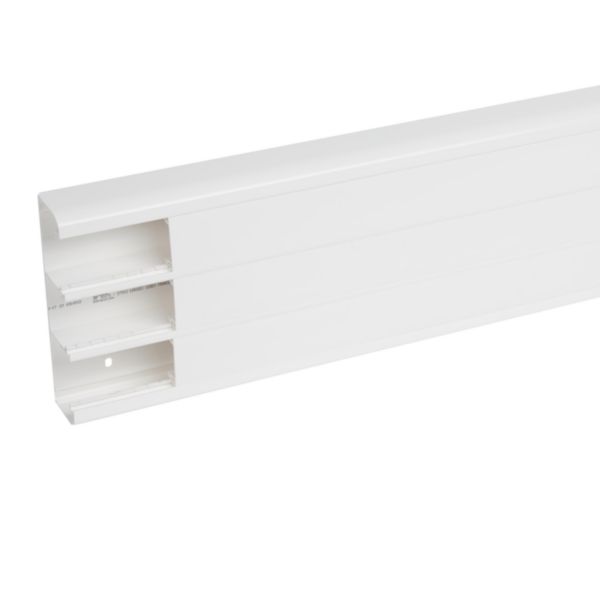

Snap-on trunking 3 compartments white 50x180mm, length 2,5m
DLP
LEGRAND
Snap-on trunking 3 compartments white 50x180mm, length 2,5m
REF. 011024
EAN.
3414970468253
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Width | 180 mm |
|---|---|
| Depth | 50 mm |
| Length | 2500 mm |
| Number of covers | 3 |
| Covers supplied with the product | Yes |
| Cover width 1 | 45 mm |
| Cover width 2 | 45 mm |
| Cover width 3 | 45 mm |
| Symmetric | Yes |
| Construction type rectangular | Yes |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Colour | White |
|---|---|
| RAL-number | 9003 |
| Construction rear wall (inner side) | Perforated |
| With protective foil | Yes |
| Number of plug-in partitions | 3 |
| With duct connector | No |
| Bottom perforation | Yes |
| Mounting method cover | Inner lying |
| With cable fixing clip | No |
| Useful cross section | 6834 mm² |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -5-60 °C |
| Storage temperature | -25-60 °C |
