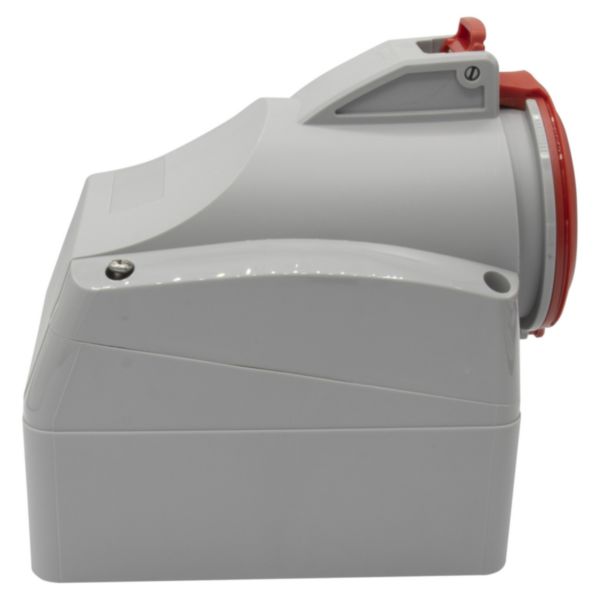

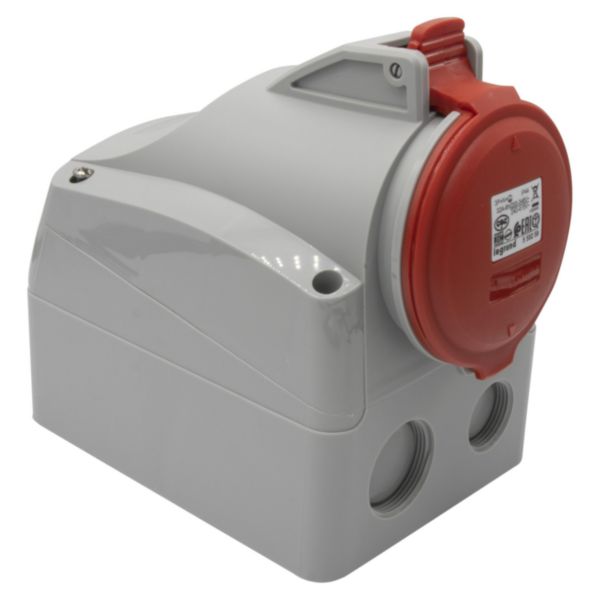

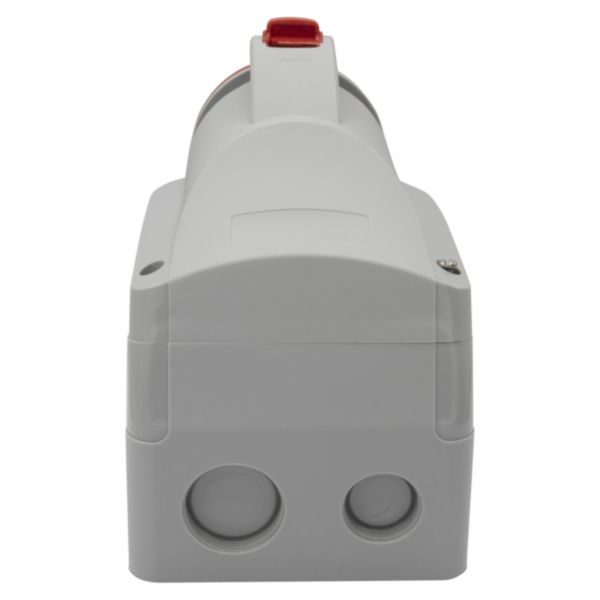

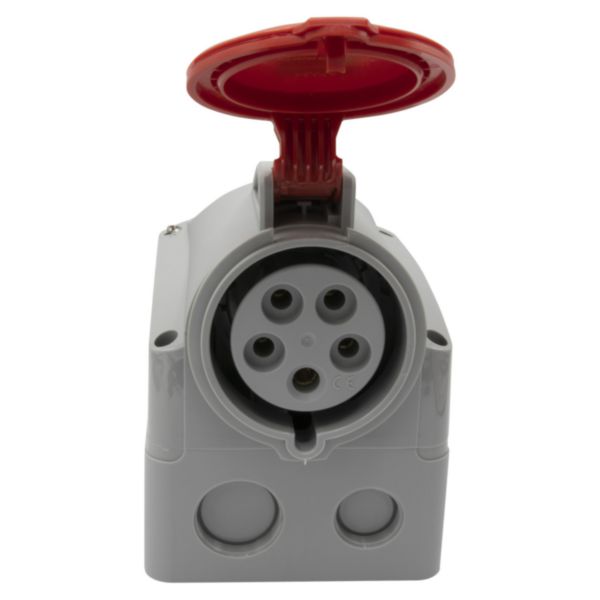

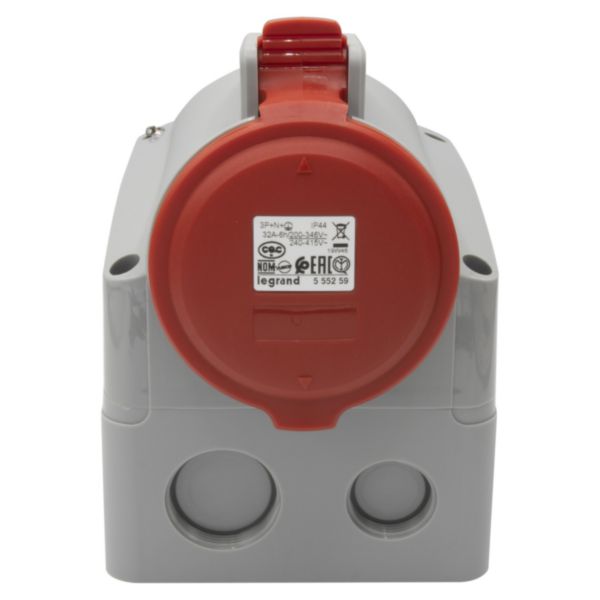

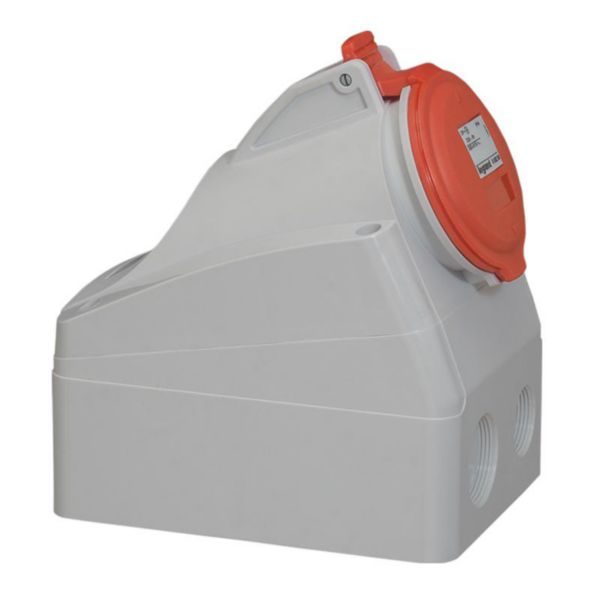

Surface mounting socket P17 - IP44 - 380/415 V~ - 32 A - 3P+N+E

Name: Surface mounting socket P17 - IP44 - 380/415 V~ - 32 A - 3P+N+E
SKU: 555259

P 17 Tempra LEGRAND

REF. 555259 EAN. 3245065552591

Compare You can only compare 4 products, you must remove 1 to add this one

P 17 Tempra Pro IP 44 - LV 16 and 32 A - sockets , plugs , mobile sockets , appliance inlets and interlocked switched sockets Surface mounting sockets - Two possible angles (5° or 25°) 380/415 V~ - IP 44 32 A - 3P+N+E

CEE socket outlet 16 A	None
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	None
CEE socket outlet 125 A	None
Number of socket outlets with protective contact CEE 7/3 (type F)	1
Protection	None
Earth leakage switch	None
Number of miniature circuit breakers (MCB)	0
Housing material	Plastic

Power supply/connection possibility	Other
Diameter cable entry	M32
Handling	Wall mounting
Degree of protection (IP)	IP44
Military model	No
Colour	Grey
Height	156 mm
Width	113 mm
Depth	161 mm
