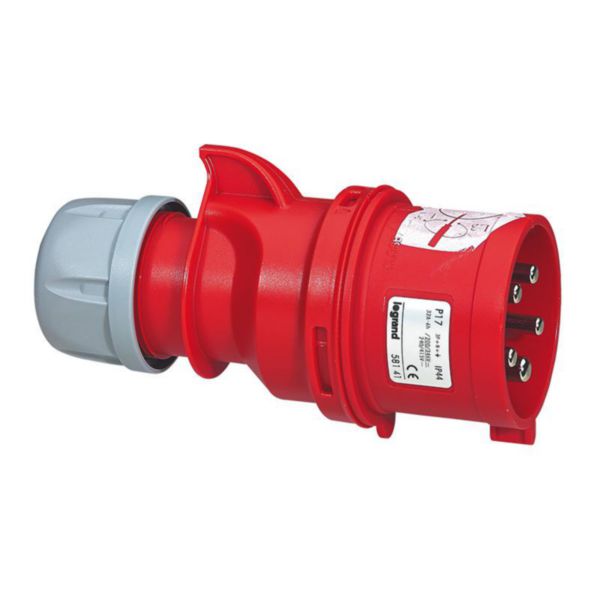

Phase inverter plug P17 - IP 44 - 380/415 V~ - 32 A - 3P+N+E
P 17 Tempra
LEGRAND
Phase inverter plug P17 - IP 44 - 380/415 V~ - 32 A - 3P+N+E
REF. 058141
EAN.
3245060581411
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| IEC-amperage | 32 A |
|---|---|
| Počet pólů | 5 |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Pozice zemnícího kontaktu | 6 h |
| Rozlišovací barva | Red |
| RAL-number | 3000 |
| Phase inverter | Yes |
| Stupeň krytí (IP) | IP44 |
|---|---|
| Connection system | Screwed terminal |
| Cable entry | Gland nut |
| Insert direction | Straight |
| Materiál | Plastic |
| Vojenské provedení | No |
