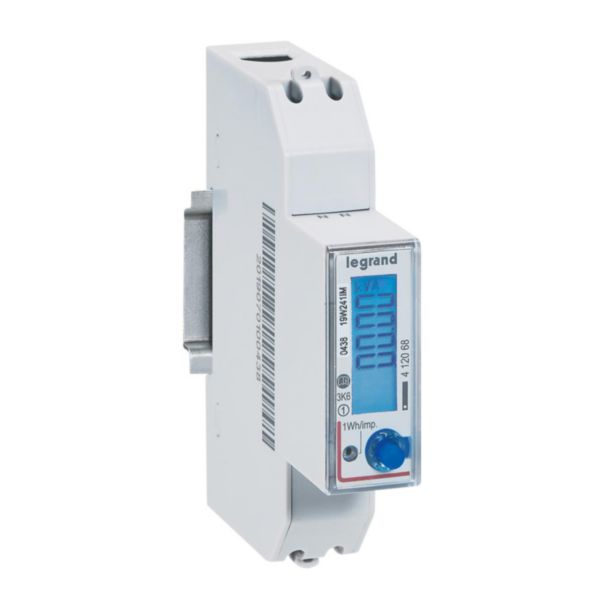

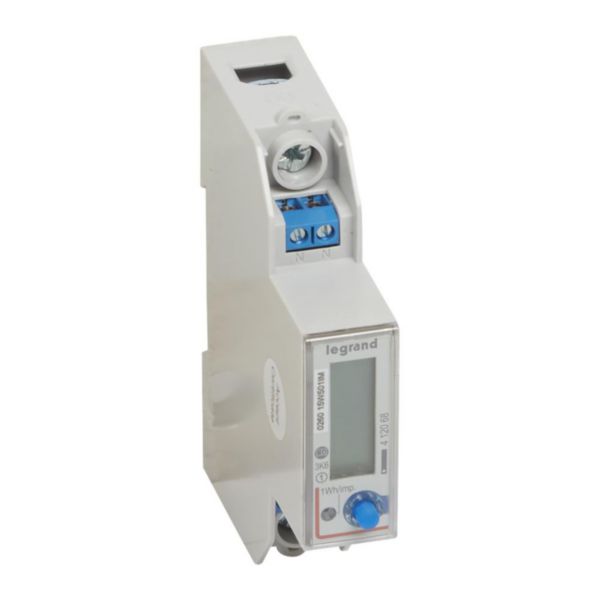

Single-phase energy meter 1 module with direct connection up to 45A with RS485 output
EMDX³
LEGRAND
Single-phase energy meter 1 module with direct connection up to 45A with RS485 output
REF. 412068
EAN.
3414970761279
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 45 A |
| Nominal voltage (Un) N-L | 196-264 V |
| Frequency | 47-63 Hz |
| Pole type | Single phase |
| Model | Direct measurement |
| Energy type | Effective power |
| Suitable for | Purchase |
| Tariff type | One-tariff |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
|---|---|
| Approval | Domestic |
| Pulse output | None |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adapter) |
| Width in number of modular spacings | 1 |
| Type of interface | RS-485 |
| EEC40 signature | No |
| With lock code | No |
| Number of positions total (counter) | 6 |
| Degree of protection (IP) | IP20 |
Documentation
8 documents
Technical Sheet
Technical Guide
Technical Guide
Instruction Use
Technical Guide
Technical Sheet
Technical Guide
Technical Guide
2 documents
Catalogue Technical Page
Catalogue Commercial Page
1 document
3D Autocad
