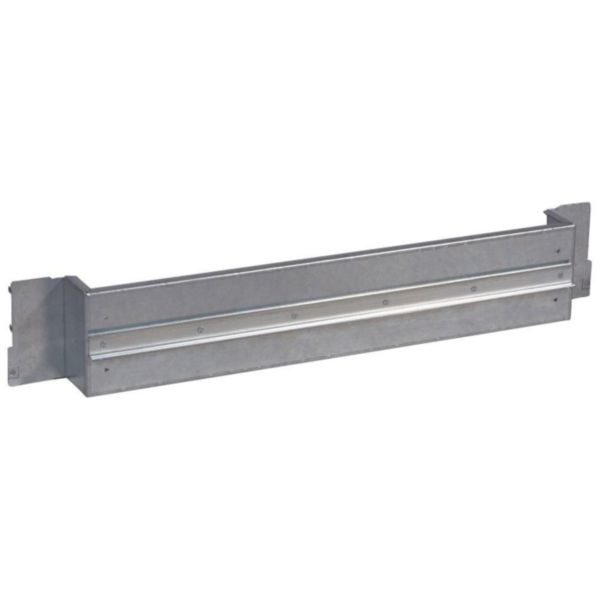

Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 36 modules

LEGRAND

Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 36 modules

REF. 020661 EAN. 3245060206611
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250
  • Plates for fixed version DPX³ 160/250 with Front terminals - Direct Fixing on functional up Rights devices in vertical position - 36 modules - Equipped with a rail symmetrical for Fixing DPX³ - The DPX³ must be equipped with a Fixing plate Cat.Nos 4 210 68/69/71/72 or plate for manual supply inverter Cat.No 4 210 58 - Designed for simultaneous mounting of DPX³ 160/250 and modular equipment (with spacer Cat.No 0 262 99)

Technical characteristics

Height 300 mm
Width 850 mm
Material Steel
Surface protection Lacquered
Perforated Yes
Halogen free Yes

Documentation

1 document
Workshop Book
1 document
Catalogue Commercial Page
ex223001_0385.pdf pdf (0.12 Mo)
6 documents
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
