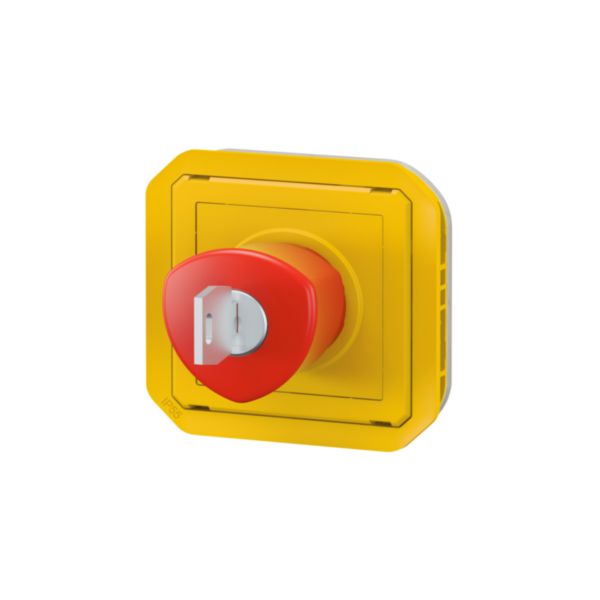

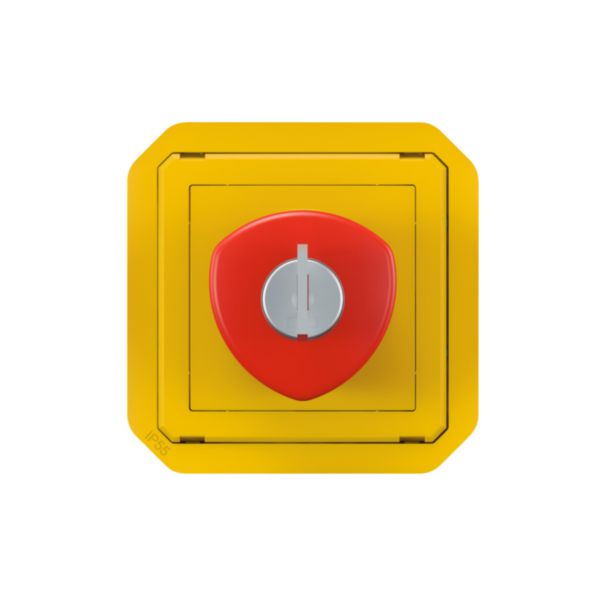

Plexo™ - emergency push button with key for reset - yellow - mechanism
Plexo™
LEGRAND
Plexo™ - emergency push button with key for reset - yellow - mechanism
REF. 069548L
EAN.
3414971878723
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Unlocking method | Key-release |
|---|---|
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Degree of protection (IP) | IP55 |
| With lighting | No |
| Hole diameter | 22.5 mm |
| Connection type auxiliary circuit | Screw connection |
| Width | 70.5 mm |
| Height | 70.5 mm |
|---|---|
| Depth | 73 mm |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Voltage type | AC |
| Nominal voltage | 220-250 V |
| Terminals capacity | 1.5-2.5 mm² |
