Plexo™ - 1-gang surface box with 2 membrane glands (2 x 1 entry) - IP55 - White

Name: Plexo™ - 1-gang surface box with 2 membrane glands (2 x 1 entry) - IP55 - White
SKU: 069689L

Plexo™ LEGRAND

Plexo™ - 1-gang surface box with 2 membrane glands (2 x 1 entry) - IP55 - White

REF. 069689L EAN. 3414971881518

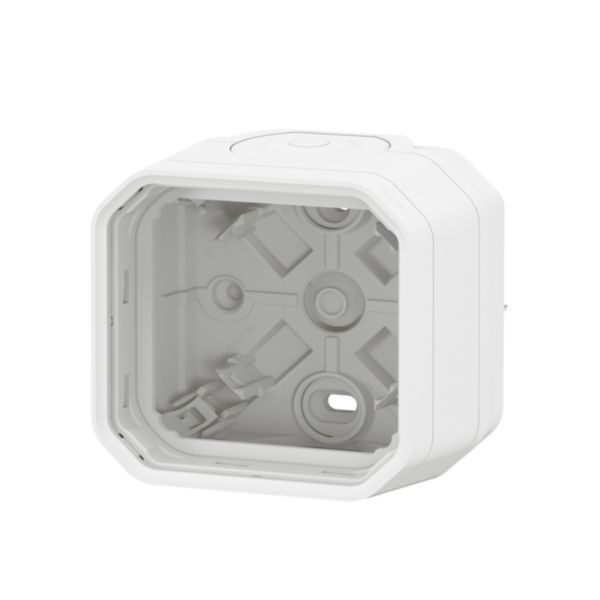

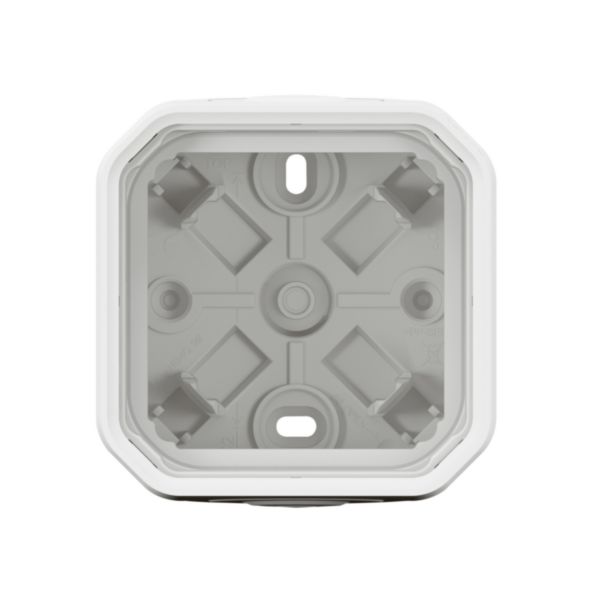

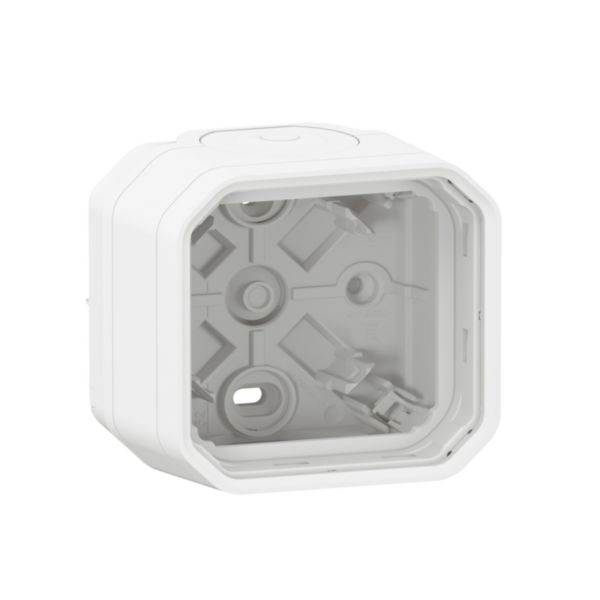

The white waterproof 1-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). The box conception gives the opportunity to wire the mechanism from the top, bottom, sides or back. For indoor or outdoor use.

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Description

The white waterproof 1-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). The box conception gives the opportunity to wire the mechanism from the top, bottom, sides or back. For indoor or outdoor use.

Product charateristics

Surface box to install functions supplied in composable mode (mechanism products).
IP55 : protected against dust and water spary from all directions.
Plastic materials with reinforced UV protection

The product's benefits

Installation

A two-part box : a thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring (the flexible part on the back of the product adpats to the shape of the wall) and a frame, to be clipped on the mounting plate.

Avantages

The box is composed of a mounting plate and a frame. The thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring. The flexible part on the back of the product adpats to the shape of the wall.
The mechanism is fixed to the mounting plate symmetrically at 90°, allowing cables/tubes to be fed in from the top, bottom, right or left, while maintaining the standard vertical position of the button.

Technical characteristics

Antimicrobial treatment	No
Assembly arrangement	Surface mounted box
Suitable for modular domestic switching devices	No
Number of units	1
Mounting direction	Horizontal and vertical
Shape	Other
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Transparent	No
With cover frame	No
With duct entry	Yes

With cable entry	Yes
With screw gland entry	No
Shock resistant	No
Degree of protection (IP)	Other
Width	82 mm
Height	85 mm
Depth	57 mm
Device width	82 mm
Device height	85 mm
Device depth	57 mm
Degree of impact strength (IK)	Not applicable
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Entry membrane gland type	Flexible to puncture
Cable support	Not applicable
