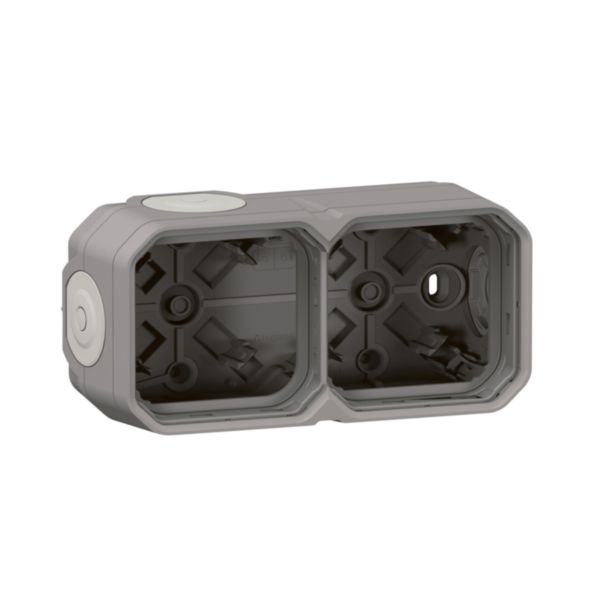

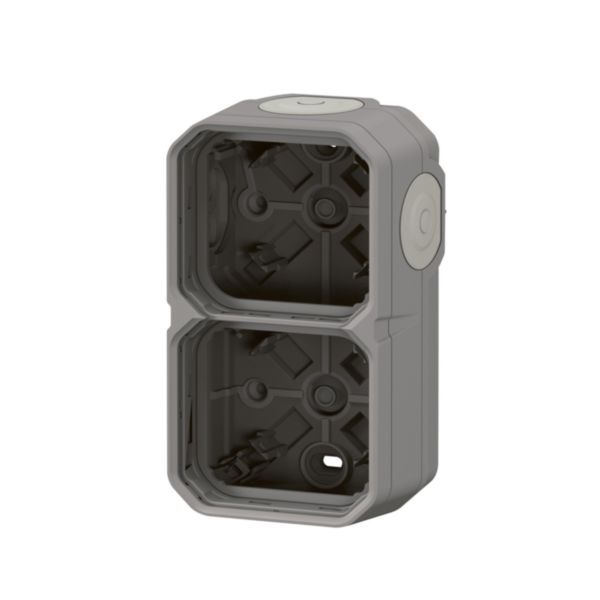

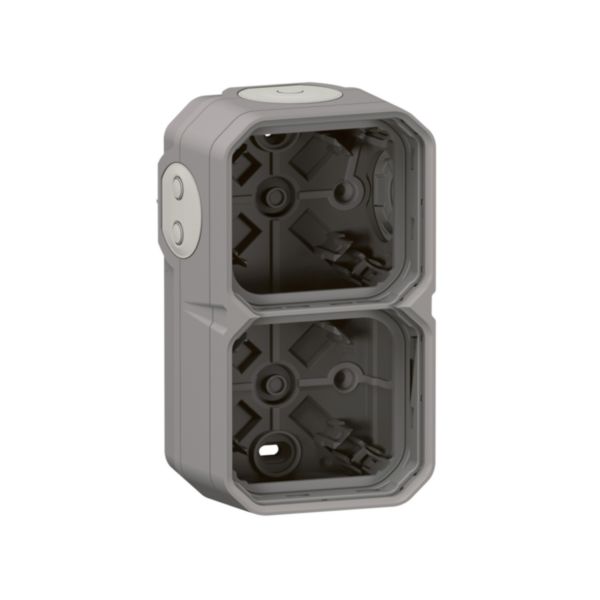

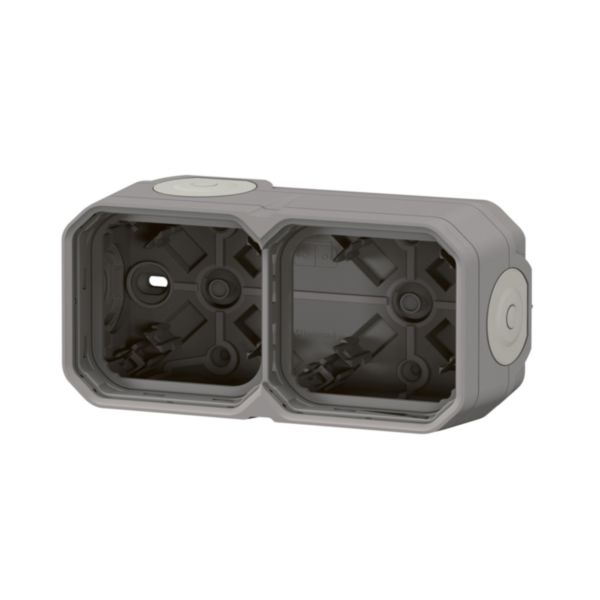

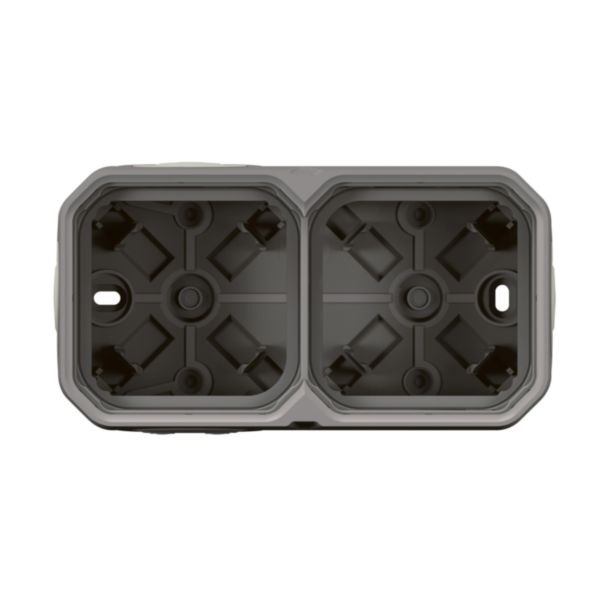

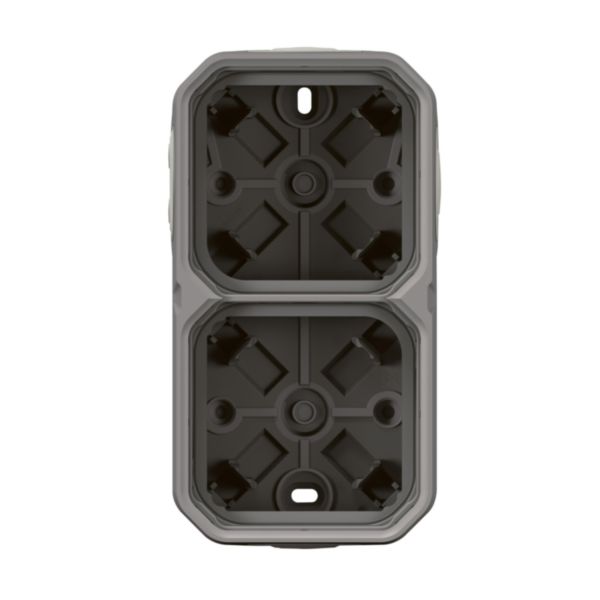

Plexo™ - 2-gang surface box with 4 membrane glands (3 x 1 entry + 1 x 2 entries) - Horizontal and vertical - IP55 - Grey

Name: Plexo™ - 2-gang surface box with 4 membrane glands (3 x 1 entry + 1 x 2 entries) - Horizontal and vertical - IP55 - Grey
SKU: 069672L

Plexo™ LEGRAND

Plexo™ - 2-gang surface box with 4 membrane glands (3 x 1 entry + 1 x 2 entries) - Horizontal and vertical - IP55 - Grey

REF. 069672L EAN. 3414971881198

The grey waterproof 2-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). This box conception gives the opportunity to install it horizontally or vertically. For indoor or outdoor use.

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Description

The grey waterproof 2-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). This box conception gives the opportunity to install it horizontally or vertically. For indoor or outdoor use.

Product charateristics

Surface box to install functions supplied in composable mode (mechanism products).
IP55 : protected against dust and water spary from all directions.
Plastic materials with reinforced UV protection

The product's benefits

Installation

A two-part box : a thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring (the flexible part on the back of the product adpats to the shape of the wall) and a frame, to be clipped on the mounting plate.

Usage

The box can be used for both vertical and horizontal installation thanks to the 90° symmetrical mechanims.

Avantages

The box is composed of a mounting plate and a frame. The thin and very rigid mounting plate allows an easy fixing and a freedom of movement for wiring. The flexible part on the back of the product adpats to the shape of the wall.
The box can be used for both vertical and horizontal installation thanks to the 90° symmetrical mechanims.

Technical characteristics

Antimicrobial treatment	No
Assembly arrangement	Surface mounted box
Suitable for modular domestic switching devices	No
Number of units	2
Mounting direction	Horizontal and vertical
Shape	Other
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Grey
RAL-number (similar)	7046
Transparent	No
With cover frame	No
With duct entry	Yes
With cable entry	Yes

With screw gland entry	No
Shock resistant	No
Degree of protection (IP)	Other
Width	82 mm
Height	155 mm
Depth	57 mm
Device width	82 mm
Device height	155 mm
Device depth	57 mm
Degree of impact strength (IK)	Not applicable
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Tube diameter for wall mounted product	16-25 mm
Maximum Input cable diameter	17 mm
Entry membrane gland type	Flexible to puncture
Cable support	Not applicable
