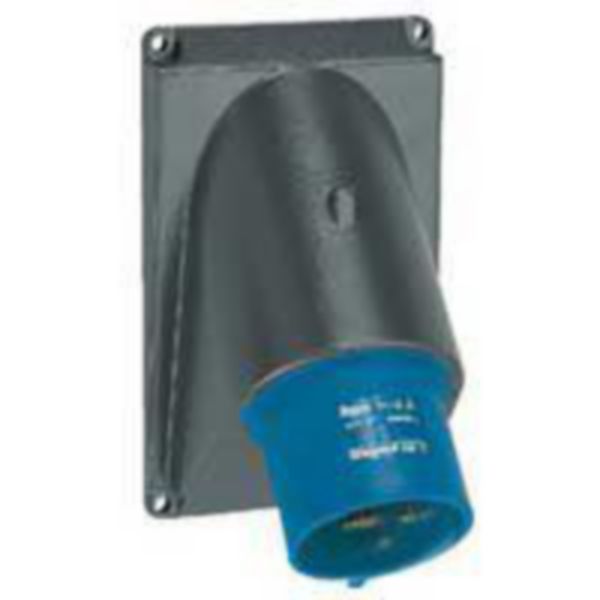

Panel appliance inlet Hypra - IP 44 - 200/250 V~ - 16 A - 2P+E - plastic

Name: Panel appliance inlet Hypra - IP 44 - 200/250 V~ - 16 A - 2P+E - plastic
SKU: 052172

Hypra LEGRAND

REF. 052172 EAN. 3245060521721

Compare You can only compare 4 products, you must remove 1 to add this one

Hypra IP 44 sockets and plugs metal, plastic, rubber, IP 44/55 Prisinter - LV 16 to 63 A and ELV 16 and 32 A - Conform to IEC 60309 - 1 and IEC 60309 - 2 - IP 44 according to IEC 60529 - IK 09 : plastic and rubber - IK 10 : metal according to IEC 62262 - Self - extinguishing : - 850°C (support of active parts) / 960 °C for Prinsinter) - 650 °C : plastic housing conform to IEC 60695 - 2 - 10 - 50°C to + 100°C ( - 20°C for Prisinter) LV panel appliance inlets 200 to 250 V~ 50/60 Hz - 16 A 2P+E - To be associated with Cat.No 0 520 79 for surface appliance inlets - Plastic - 16 A

2 documents

Select all

Technical Sheet

F00138FR-04.pdf pdf (1.44 Mo)

Technical Sheet

F00138EN-04.pdf pdf (1.25 Mo)

1 document

Select all

3D Autocad

052172.dwg dwg (0.09 Mo)

1 document

Select all

Agreement

OC / CB-FR_710635/A1 (0.72 Mo)
