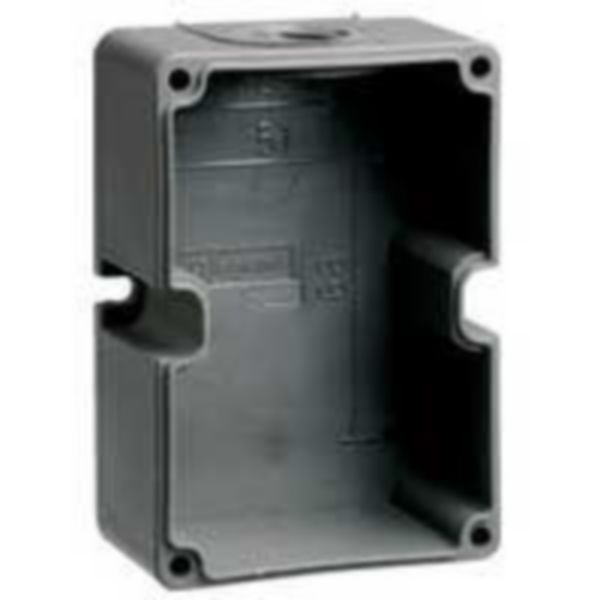

Box Hypra - IP 44 - for surface appliance inlet 16 A - 2P+E - plastic

Hypra LEGRAND

Box Hypra - IP 44 - for surface appliance inlet 16 A - 2P+E - plastic

REF. 052079 EAN. 3245060520793
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Hypra IP 44 sockets and plugs metal, plastic, rubber, IP 44/55 Prisinter - LV 16 to 63 A and ELV 16 and 32 A - Conform to IEC 60309 - 1 and IEC 60309 - 2 - IP 44 according to IEC 60529 - IK 09 : plastic and rubber - IK 10 : metal according to IEC 62262 - Self - extinguishing : - 850°C (support of active parts) / 960 °C for Prinsinter) - 650 °C : plastic housing conform to IEC 60695 - 2 - 10 - 50°C to + 100°C ( - 20°C for Prisinter) Accessories For LV surface appliance inlet - Box Hypra - For plastic surface appliance inlets : - - 100 to 130 V~ 16 A 2P+E - 200 to 250 V~ 16 A 2P+E

Technical characteristics

CEE socket outlet 16 A None
CEE socket outlet 32 A None
CEE socket outlet 63 A None
CEE socket outlet 125 A None
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Protection None
Earth leakage switch None
Number of miniature circuit breakers (MCB) 0
Housing material Plastic
Power supply/connection possibility Other
Diameter cable entry M20
Handling Wall mounting
Degree of protection (IP) Other
Military model No
Colour Grey
Height 106 mm
Width 74 mm
Depth 41.5 mm

Documentation

3 documents
Instruction Use
2500350-00.pdf pdf (0.01 Mo)
Technical Sheet
F00138FR-04.pdf pdf (1.44 Mo)
Technical Sheet
F00138EN-04.pdf pdf (1.25 Mo)
