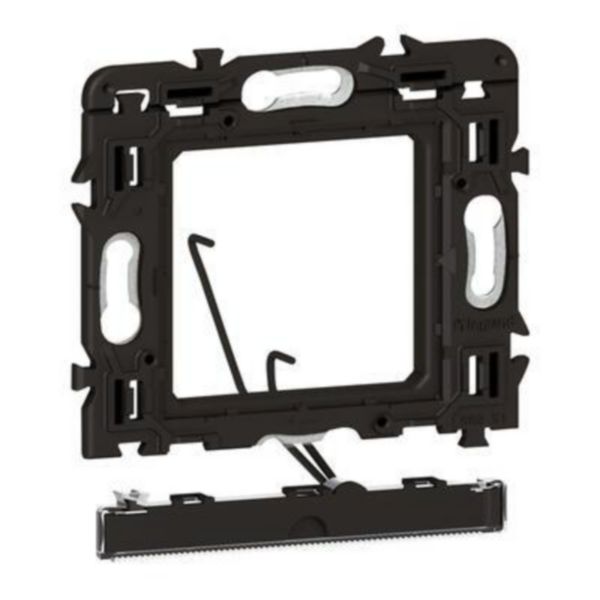

Name: Mosaic™ - Illuminated support - 1.4 W- 2 modules
SKU: 080262

Mosaic™ - Illuminated support - 1.4 W- 2 modules

Mosaic™ LEGRAND

Mosaic™ - Illuminated support - 1.4 W- 2 modules

REF. 080262 EAN. 3414971580503

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic Programme supports
Illuminated supports - Equipped with a ring of low consumption LEDs (0,3 kWh per year in continuous use) to create an illuminated halo effect through the finishing plate - For 2 modules - Power : 1.4 W - Ideal for indicator function

Transformer integrated	No
With integrated voltage decreasing resistor	Yes
With light source	Yes
With integrated diode	Yes
Lamp holder	None
Rated voltage Ue at AC 50 Hz	230-230 V
Rated voltage Ue at AC 60 Hz	230-230 V
Voltage type for actuating	AC
Lamp type	LED
Connection type auxiliary circuit	Screw connection

Colour light source	White
Type of fastening	Other
Width	11.8 mm
Height	67.3 mm
Depth	5.6 mm
Degree of protection (IP)	IP40
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Stress test conformity (1000V)	No
Halogen free	Yes

Mosaic™ - Illuminated support - 1.4 W- 2 modules
