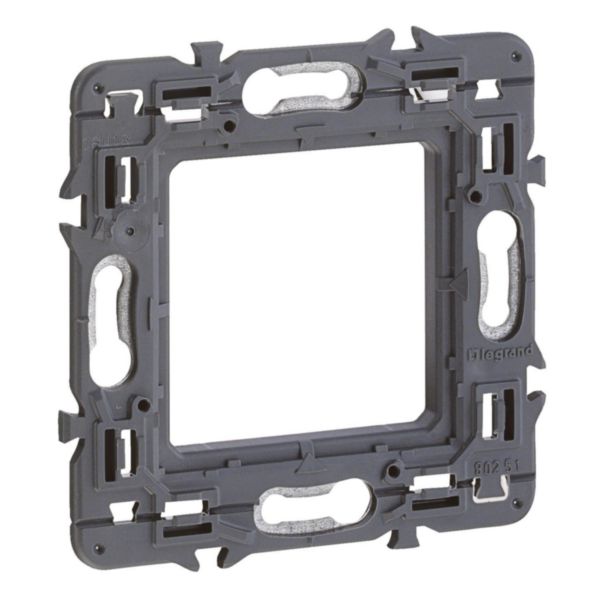

Mosaic™ - Support - with site protection - for 2 modules
Mosaic™
LEGRAND
Mosaic™ - Support - with site protection - for 2 modules
REF. 080251
EAN.
3245060802516
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
Width | 74 mm |
---|---|
Mounting method | Mounting with screw |
Depth | 7.2 mm |
Height | 74 mm |
Mounting method of the module inserts | Front side |
Number of modules horizontal (module system) | 2 |
Number of modules vertical (module system) | 1 |
With built-in installation box | No |
Mounting direction | Horizontal and vertical |
Suitable for mounting in round junction box 60 mm | No |
With nail | No |
---|---|
Suitable for subfloor installation duct box | No |
Suitable for wall duct | No |
Suitable for mounting on DIN-rail 35 mm | No |
Model | Flush-mounted |
Material quality | Other |
Surface protection | Galvanic/electrolytic zinc plated |
Material | Metal |
With screws | No |
Flush-mounted installation | Yes |
