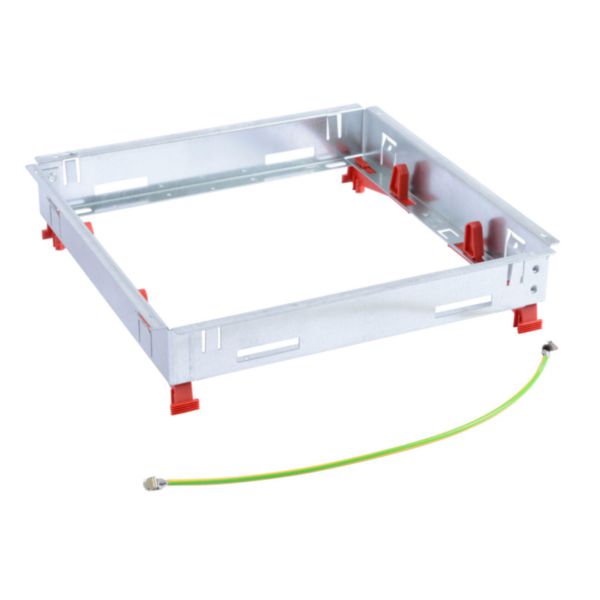

Frame for access unit of standard floor box size equivalent to the supports kits 16M vertical or 24M horizontal

LEGRAND

Frame for access unit of standard floor box size equivalent to the supports kits 16M vertical or 24M horizontal

REF. 088041 EAN. 3414970755346

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
You might also need

Product charateristics

Requires a minimum 66mm floor depth.
Frame in galvanised steel for protection against the corrosion.
Required floor dimensions : 264mm x 264mm

Recommendation / Restriction

Indoor use only.

The product's benefits

Installation

Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).

Usage

Adapts to the surrounding environment thanks to the choice possibilities of the standard lid to associate with it : plastic or Stainless steel or Brass finish.

Avantages

A universal range available in three sizes, adapted to any kind of floor (raised floors, screed floors) and upgradable because equipped with commons wiring devices supports (a standard floor box can become a flush one without touching the electrical connexions).
Fast installation without tool : the access unit frame clips in any kind of floor (directly in the raised floor or through one of the two backboxes in the screed floor).

Technical characteristics

Cover model	Rectangular
Number of device cups	1
Housing material	Stainless steel
Surface protection housing	Chromium-plated
With opening carpeting	No
Protective frame carpeting	No
Colour	Other
Suitable for subfloor duct	No

Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Suitable for wet cleaning	No
Outer width	281.3 mm
Outer length	281.3 mm
Length built-in dimension	264 mm
Width built-in dimension	264 mm
Min. built-in depth	61.2 mm
