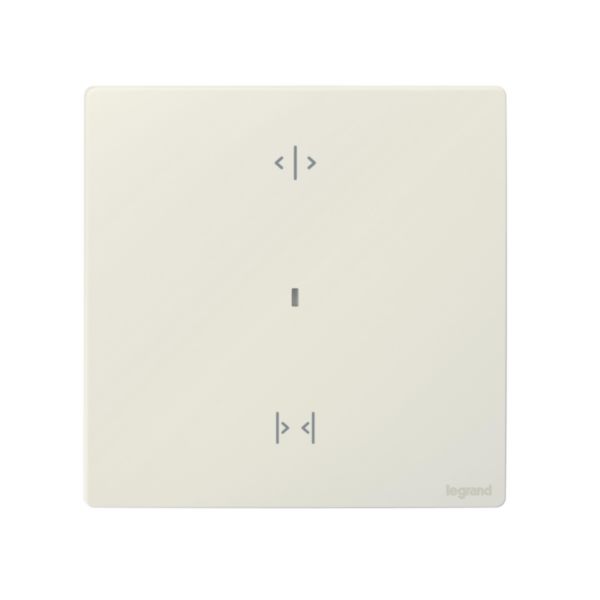

Wireless curtain/roller blind switch 1gang Mallia Senses - white

Mallia Senses LEGRAND

Wireless curtain/roller blind switch 1gang Mallia Senses - white

REF. 281518MW EAN. 3414972222174
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Up/down/stop function
  • LED indicator with low battery warning
  • Supplied with a replaceable battery with an 8 - year life
  • Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendation / Restriction
  • To pair your roller shutter wireless switch, you first need to purchase and install a Mallia Senses with Netatmo connected starter pack, as well as one or more Mallia Senses with Netatmo connected roller shutter switches

The product's benefits

Installation
  • Extra-slim, the roller shutter wireless switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
  • Pair as many connected roller shutter switches as you wish and control them all with a single press on your wireless switch
Avantages
  • When associated to the connected starter pack, the Celiane with Netatmo products can be controlled manually or remotely from your smartphone or via voice control
  • When installed on the wall, the wireless remote switch has the same aesthetic and thickness as all the Celiane with Netatmo switches
  • Easy to clean surface thanks to the planar geometry of the switch and to the surface treatment of the plastics used

Technical characteristics

Radio frequency 2400 MHz
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP40
Keyboard protection cover No
Current supply Battery
Width 86 mm
Height 86 mm
Depth 13 mm
Built-in depth 0 mm
Degree of impact strength (IK) IK02
Operating / setting temperature 5-45 °C
Storage temperature 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour White
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Shutter management
Application name Home + Control
Programming way Smartphone apps

Documentation

2 documents
Instruction Use
LE13215AA.pdf pdf (1.58 Mo)
Technical Sheet
F03718EN-00.pdf pdf (0.17 Mo)
