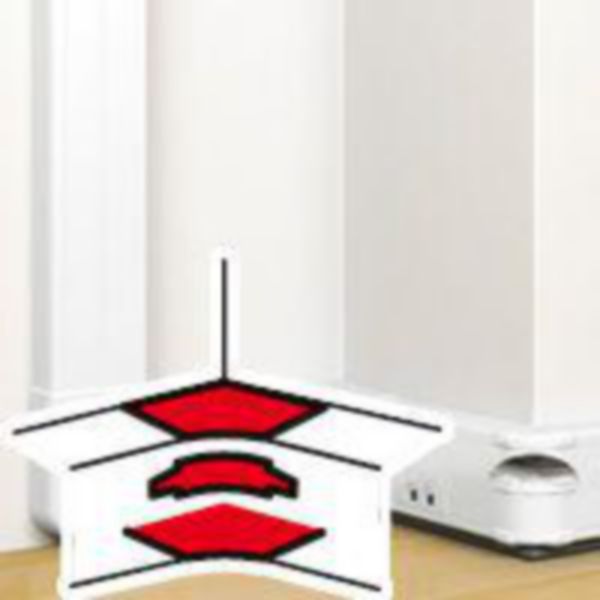

Variable internal angle for snap-on trunking 50x130mm
DLP
LEGRAND
Variable internal angle for snap-on trunking 50x130mm
REF. 075623
EAN.
3245060756239
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Width | 121 mm |
|---|---|
| Depth | 50 mm |
| Shape | Symmetric |
| Number of covers | 0 |
| Cover width 1 | 0 mm |
| Cover width 2 | 0 mm |
| Cover width 3 | 0 mm |
| Model | Base unit |
| Angle | 80-100 ° |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
|---|---|
| Colour | White |
| RAL-number | 9003 |
| With protective foil | No |
| With duct connector | No |
| Bottom perforation | No |
| Mounting method cover | Inner lying |
| With cable fixing clip | No |
| Degree of protection (IP) | Other |
| Degree of impact strength (IK) | Other |
| Operating / setting temperature | 15-60 °C |
| Height | 110 mm |
| Storage temperature | -5-60 °C |
Documentation
3 documents
Technical Sheet
Technical Sheet
Instruction Use
2 documents
Catalogue Technical Page
Catalogue Commercial Page
3 documents
BIM Data
BIM Data
BIM Data
