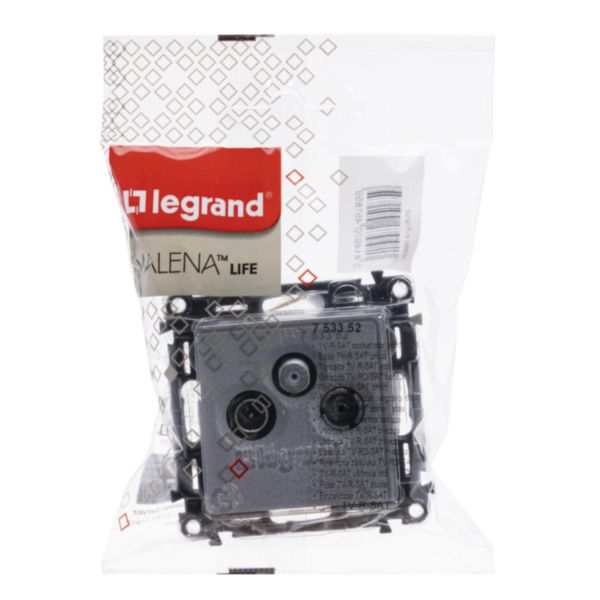

TV-R-SAT star socket Valena Life - attenuation 1.5 dB - alu

Name: TV-R-SAT star socket Valena Life - attenuation 1.5 dB - alu
SKU: 753352

Valena Life Legrand

REF. 753352 EAN. 3414970451859

Compare You can only compare 4 products, you must remove 1 to add this one

Valena™ Life - TV sockets with cover plate - Valena In’Matic mechanisms supplied with cover plates and support frames - To be equipped with plates - Supplied with mounted dust protection transparent shield - Flowpack packaging: robust protection to ensure optimum operation
Star architecture TV sockets - For DVBT, Cablecast and satellite installation UHD TV compatible - Class A shielded star socket LTE Ready (4G protected) - Recommended coaxial cable: 17 VATC - Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch) - Visual check of the connection - Meet EN 50083-4 and EN 50083-2 European directive - TV male connector (Ø9.5 mm); 0-862 MHz - R female connector (Ø9.5 mm): 87.5 - 108 MHz - SAT "F" type connector: 950-2400 MHzTV-R-SAT sockets - Low attenuation: 1.5 dB - Aluminium

Model	End socket
Type of socket outlet	TV/RD/SAT
DAB+	Yes
Mounting method	Flush-mounted
Tap loss at 860 MHz	1.5 dB
Tap loss at 2150 MHz	2 dB
Number of outlets	3
Suitable for cable modem	No
Suitable for remote power supply	Yes
Radio frequency band	87.5-240 MHz
SAT frequency band	950-2400 MHz
Colour	Aluminium
Surface protection	Lacquered

Surface finishing	Matt
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
Degree of impact strength (IK)	IK04
Device width	74.6 mm
Device height	74.6 mm
Device depth	27.2 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature	5-45 °C
Storage temperature	-25-70 °C
