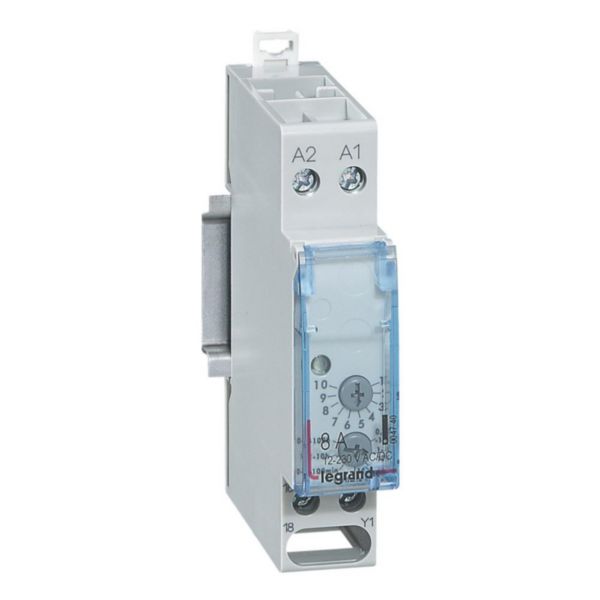

Time delay relay - ''ON'' delay - 8 A - 250 V~ - Lexic

Name: Time delay relay - ''ON'' delay - 8 A - 250 V~ - Lexic
SKU: 004740

LEGRAND

REF. 004740 EAN. 4010957047405

Compare You can only compare 4 products, you must remove 1 to add this one

Time delay relays - 12 to 230 V~ and = - For controlling the switching ON or OFF of a circuit (lighting, ventilation, automation, signalling) in operation for a specific time from 0,1 sec to 100 hrs - Supply voltage : 12 to 230 V~ (50/60 Hz) and = - Output : 8 A - 250 V~ - cos Ï = 1 per inverter contact
Time delay relaysON delay - Delays load switch - on (alarm, lighting, contactor) - The time period starts when the relay is switched ON. - At the end of the time period (T) , the load is switched ON - Number of modules : 1

Type of excitation	Analogue with single function
Function	Operating delay
1st interval unit	Seconds/hours
1st interval	0.1-360000
Mounting method	DIN rail
Width in number of modular spacings	1
Built-in height	70 mm
Number of contacts as normally open contact	0

Number of contacts as normally closed contact	0
Number of changeover switches	1
Control voltage 1	12-230 V
Type of control voltage 1	AC/DC
Frequency control voltage 1	50-60 Hz
Supply voltage	250-250 V
Voltage type (supply voltage)	AC
Nominal switching current at 250 V AC	8 A

1 document

Select all

Instruction Use

291808-07.pdf pdf (0.64 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0109.pdf pdf (0.07 Mo)

1 document

Select all

3D Autocad

004740.dwg dwg (0.1 Mo)
