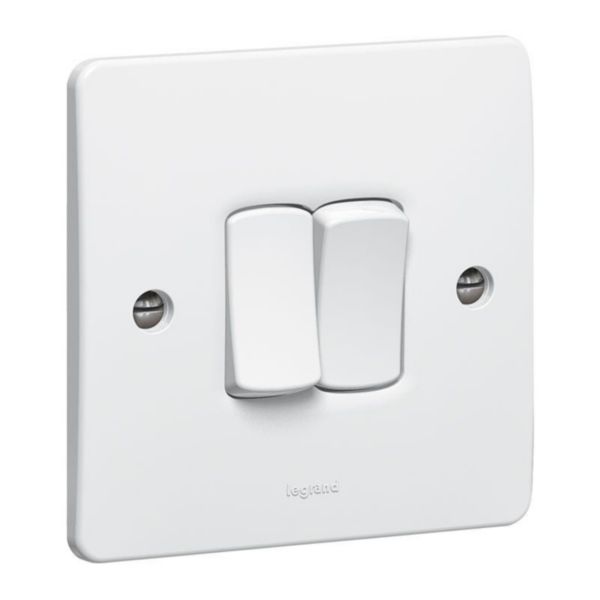

Synergy™ - Single pole switch - 2 gang - 1 way 20 AX 250 V~ - White
Synergy™
LEGRAND
Synergy™ - Single pole switch - 2 gang - 1 way 20 AX 250 V~ - White
REF. 730134
EAN.
3245067301340
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Wiring system | Off switch 1-pole |
|---|---|
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 2 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
| Colour of switch operator | White |
| Label space/information surface | No |
| Illumination | No |
| Function lighting | Other |
|---|---|
| Type of lighting | Other |
| Suitable for degree of protection (IP) | IP2X |
| Degree of impact strength (IK) | IK01 |
| Nominal voltage | 250 V |
| Rated current | 20 A |
| Switching current for fluorescent lamps | 20 AX |
| Feedback-signal contact | No |
| Connection type | Screwed terminal |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 25.5 mm |
| Built-in depth | 14 mm |
| Min. depth of built-in installation box | 30 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-40 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Cable section | 4-4 mm² |
Documentation
1 document
Technical Sheet
1 document
Catalogue Commercial Page
