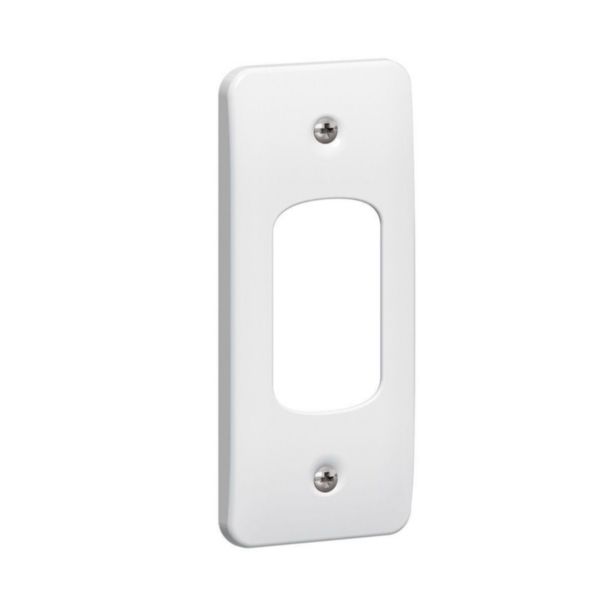

Synergy™ - Front plate - for 1 Grid module - architrave - White
Synergy™
LEGRAND
Synergy™ - Front plate - for 1 Grid module - architrave - White
REF. 730180
EAN.
3245067301807
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Number of units | 1 |
|---|---|
| Mounting direction | Horizontal |
| Number of units horizontal | 1 |
| Number of units vertical | 1 |
| Number of modules horizontal (module system) | 1 |
| Number of modules vertical (module system) | 1 |
| With mounting grid | No |
| Flush-mounted installation | Yes |
| Suitable for subfloor installation duct box | No |
| Suitable for wall duct | No |
| Suitable for built-in installation | No |
| Label space/information surface | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
|---|---|
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| With hinged lid | No |
| Degree of protection (IP) | IP2X |
| Degree of impact strength (IK) | IK01 |
| Type of fastening | Screw mounting |
| Width | 86 mm |
| Height | 36 mm |
| Depth | 7 mm |
| Built-in height | 0 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-40 °C |
| Latin wood species | Not applicable |
| Certification of wood (list) | Not applicable |
| Wood Climate area | Not applicable |
