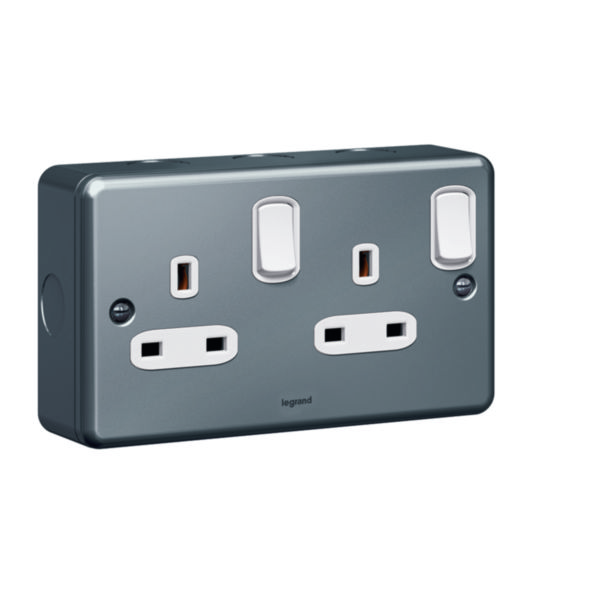

Synergy™ - Double pole socket outlet - 2 gang switched - 13 A 250 V~ - Metalclad
Synergy™
LEGRAND
Synergy™ - Double pole socket outlet - 2 gang switched - 13 A 250 V~ - Metalclad
REF. 733870
EAN.
3245067338704
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | British Standard |
|---|---|
| Protective contact | Round |
| Number of active contacts (round) | 0 |
| Number of active contacts (flat) | 1 |
| With complemantary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of units | 2 |
| Number of socket outlets switchable | 2 |
| Number of phases | 1 |
| Imprint/indication | Other |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Label space/information surface | No |
| Colour | Grey |
| Metallic colour | Yes |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Over voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Surface mounted |
| Type of fastening | Mounting with screw |
| Material | Metal |
| Material quality | Stainless steel |
| Halogen free | Yes |
| Surface protection | Untreated |
|---|---|
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With loop through function | Yes |
| With on/off switch | Yes |
| Rotated central insert | No |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP2X |
| Degree of impact strength (IK) | IK01 |
| Device width | 146 mm |
| Device height | 86 mm |
| Device depth | 47.4 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Built-in depth | 0 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-40 °C |
| Voltage type | AC |
| Power Delivery | No |
| Cable nature for connection | Flexible or rigid |
| Cable section | 4-4 mm² |
| Cable support | Other |
| Assembly arrangement | Basic element with full cover plate |
| Connected object | No |
