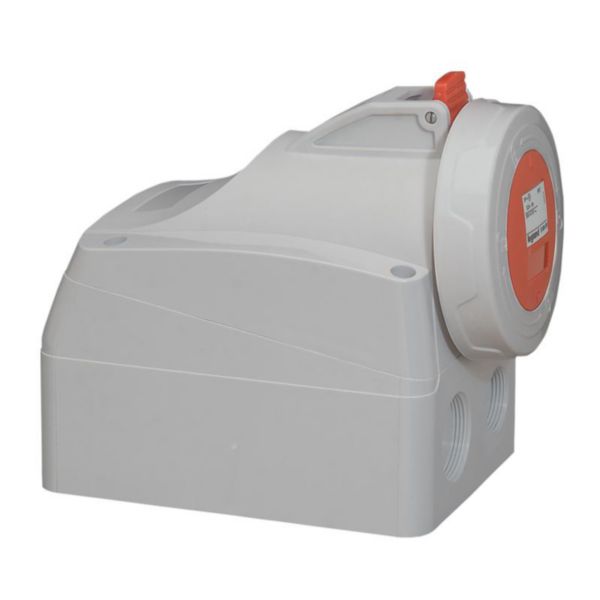

Surface mounting socket P17 - IP66/67 - 380/415 V~ - 32 A - 3P+N+E
P 17 Tempra
LEGRAND
Surface mounting socket P17 - IP66/67 - 380/415 V~ - 32 A - 3P+N+E
REF. 555459
EAN.
3245065554595
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| CEE socket outlet 16 A | None |
|---|---|
| CEE socket outlet 32 A | 1x32A5p400V |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 1 |
| Protection | None |
| Earth leakage switch | None |
| Number of miniature circuit breakers (MCB) | 0 |
| Housing material | Plastic |
| Power supply/connection possibility | Other |
|---|---|
| Diameter cable entry | M32 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP67 |
| Military model | No |
| Colour | Grey |
| Height | 163 mm |
| Width | 113 mm |
| Depth | 162 mm |
Documentation
3 documents
Technical Sheet
Instruction Use
Technical Sheet
3 documents
Catalogue Commercial Page
Catalogue Technical Page
Catalogue Technical Page
3 documents
BIM Data
3D Autocad
BIM Data
