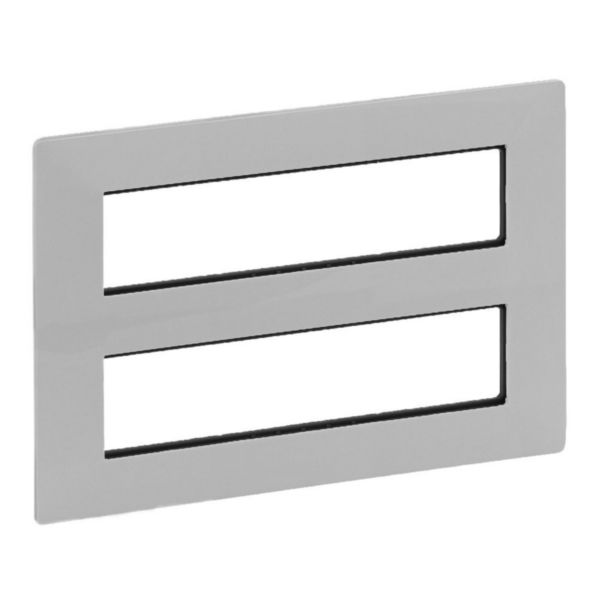

Name: Support frame with plate Valena Life - 2 x 4 x 2 modules - aluminium
SKU: 752346

Support frame with plate Valena Life - 2 x 4 x 2 modules - aluminium

Valena Life Legrand

Support frame with plate Valena Life - 2 x 4 x 2 modules - aluminium

REF. 752346 EAN. 3414970456120

Compare You can only compare 4 products, you must remove 1 to add this one

Number of units	2
Mounting direction	Horizontal and vertical
Number of units horizontal	1
Number of units vertical	2
Number of modules horizontal (module system)	8
Number of modules vertical (module system)	2
With mounting grid	Yes
Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Label space/information surface	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Lacquered
Surface finishing	Glossy

Colour	Aluminium
RAL-number (similar)	7040
Transparent	No
With hinged lid	No
Degree of protection (IP)	IP20
Degree of impact strength (IK)	IK04
Type of fastening	Engage (snap)
Width	239 mm
Height	168 mm
Depth	10 mm
Built-in height	0 mm
Operating / setting temperature	-5-40 °C
Storage temperature	-5-40 °C
Latin wood species	Not applicable
Certification of wood (list)	Not applicable
Wood Climate area	Not applicable

Support frame with plate Valena Life - 2 x 4 x 2 modules - aluminium
