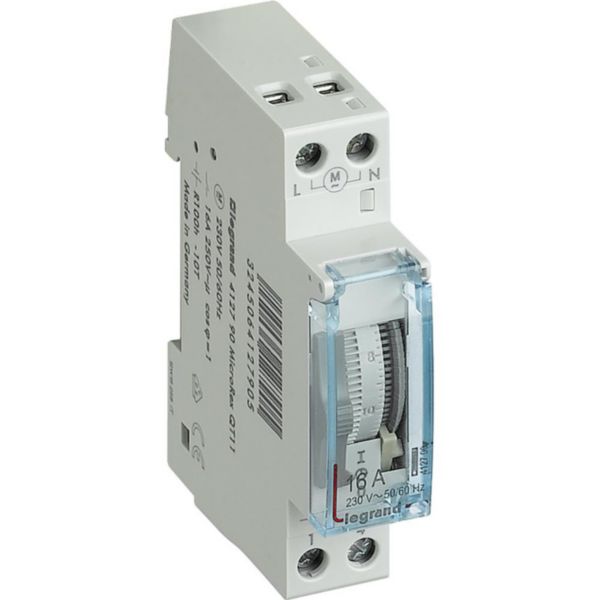

Programmable time switch - vert. dial - daily prog. - 100h working reserve

LEGRAND

Programmable time switch - vert. dial - daily prog. - 100h working reserve

REF. 412790 EAN. 3245064127905
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Mounting method DIN rail
Number of channels 1
Supply voltage 230-230 V
Voltage type (supply voltage) AC
Frequency supply voltage 50-60 Hz
Autonomy in hours 100
Accuracy per day 2.5 s
60 min program No
24 h program Yes
Weekly program No
Annual program No
Mains synchronous No
Quartz controlled Yes
Contact type Normally open contact
Shortest switching time channel 1 15 min
Program shift divide 1 15 min
Automatic switching summer-/winter time No
Suitable for manual operation Yes
Switching preselection Yes
Nominal switching current at 250 V AC 16 A
Potential free switch contact Yes
Degree of protection (IP) IP20
Width in number of modular spacings 1
Width 17.5 mm
Height 83 mm
Depth 60 mm
Operating / setting temperature -10-55 °C
Storage temperature -10-60 °C
Electric supplying direction By the top
Terminal marking indication Yes
Colour Grey
RAL-number 7035
Halogen free Yes
Terminals capacity 1.5-4 mm²
Connection type Cable
Label space/information surface No
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) V65HT
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Nickel-Metalhydride
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 4 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object No
