Plexo™ - Socket outlet - IP 44 - 20 A - 3P+E - flush mounting - Grey
Plexo™
LEGRAND

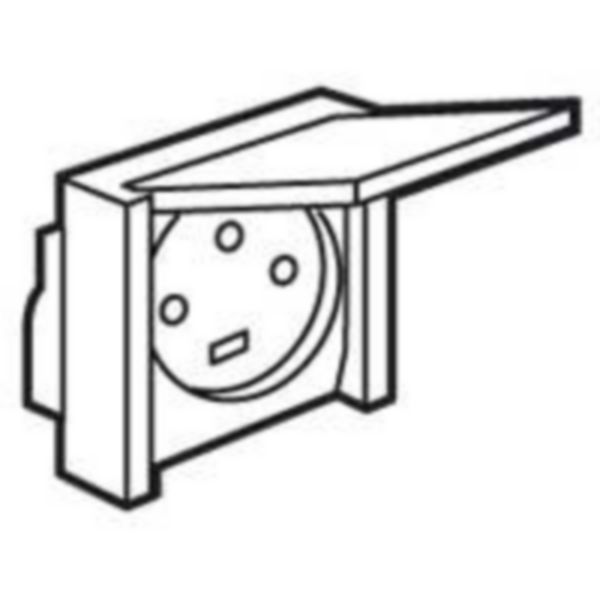

Plexo™ - Socket outlet - IP 44 - 20 A - 3P+E - flush mounting - Grey
REF. 055706
EAN.
3245060557065
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Earthing pin |
|---|---|
| Concurrently switching neutral conductor | No |
| Protective contact | Flat |
| Number of active contacts (round) | 3 |
| Number of active contacts (flat) | 0 |
| Number of active contacts (square) | 0 |
| With complemantary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of units | 1 |
| Number of modules (module system) | 2 |
| Number of socket outlets switchable | 0 |
| Number of phases | 3 |
| Imprint/indication | Degree of protection (IP) |
| Connection type | Screwed terminal |
| With hinged lid | Yes |
| With enhanced contact protection | No |
| Label space/information surface | No |
| Colour | Grey |
| RAL-number (similar) | 7046 |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Over voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Other |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
|---|---|
| Surface protection | Untreated |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With loop through function | Yes |
| With on/off switch | No |
| Rotated central insert | No |
| Nominal current | 20 A |
| Nominal voltage | 400 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP44 |
| Degree of impact strength (IK) | IK08 |
| Device width | 84 mm |
| Device height | 77 mm |
| Device depth | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -10-40 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Prewired | No |
| Terminals capacity | 2.5-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 2.5-4 mm² |
| Cable support | Other |
| Assembly arrangement | Basic element with full cover plate |
| Connected object | No |
