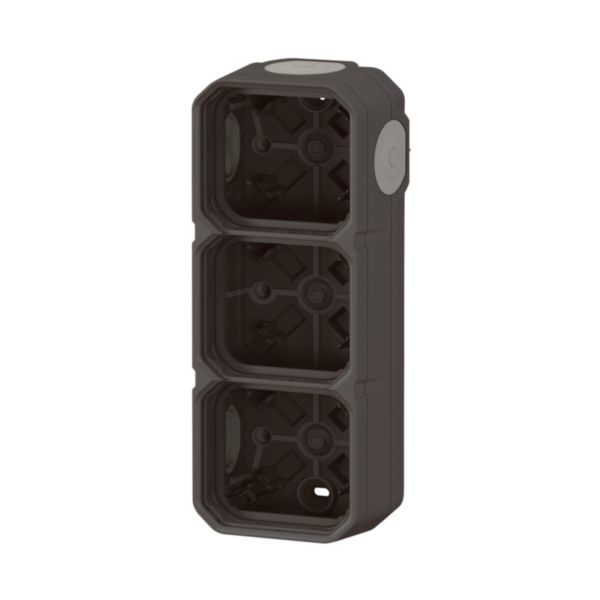

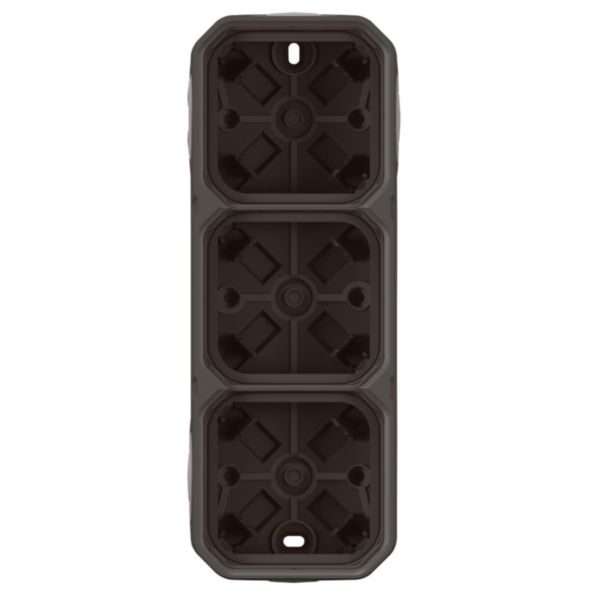

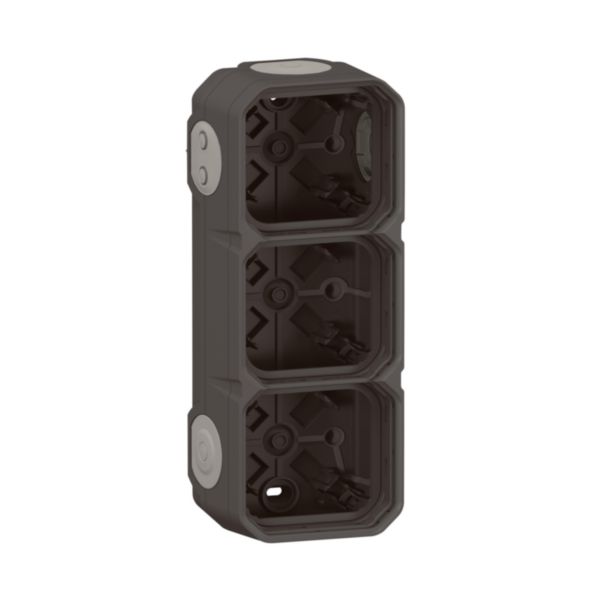

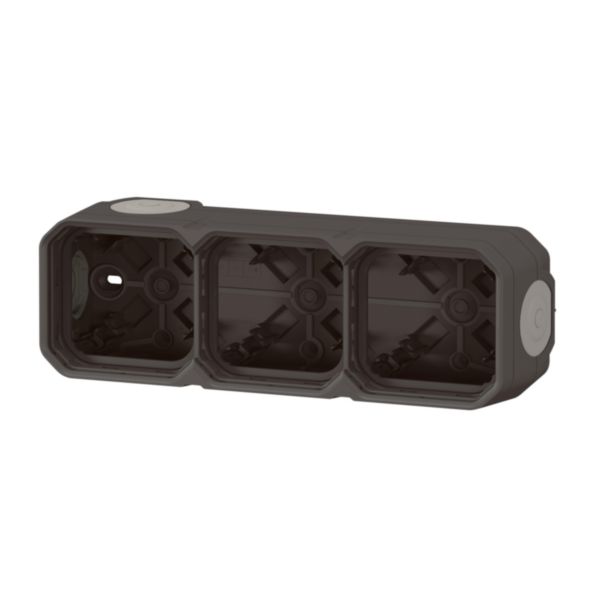

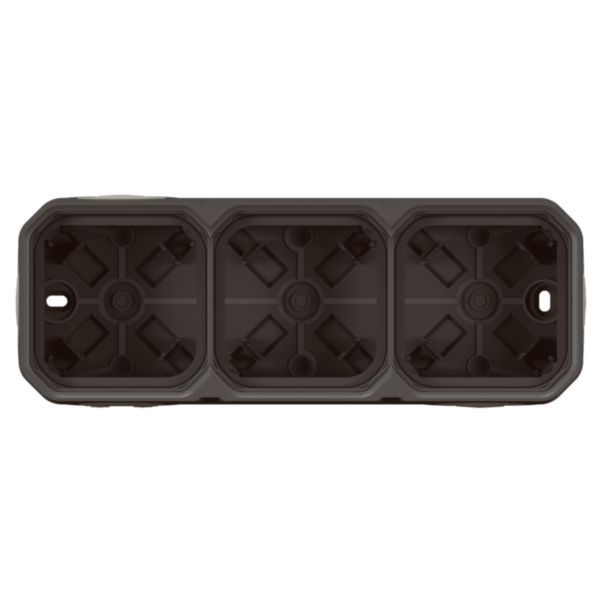

Plexo™ - 3-gang surface box with 5 membrane glands (4x1 entry + 1x2 entries) - Horizontal and vertical - IP55 - Anthracite
Plexo™
LEGRAND
Plexo™ - 3-gang surface box with 5 membrane glands (4x1 entry + 1x2 entries) - Horizontal and vertical - IP55 - Anthracite
REF. 069603L
EAN.
3414971879904
The anthracite waterproof 3-gang box Plexo allows a surface mounting of all Plexo functions (mechanism products). This box conception gives the opportunity to install it horizontally or vertically. For indoor or outdoor use.
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Antimicrobial treatment | No |
|---|---|
| Assembly arrangement | Surface mounted box |
| Suitable for modular domestic switching devices | No |
| Number of units | 3 |
| Mounting direction | Horizontal and vertical |
| Shape | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Anthracite |
| RAL-number (similar) | 7016 |
| Transparent | No |
| With cover frame | No |
| With duct entry | Yes |
| With cable entry | Yes |
| With screw gland entry | No |
|---|---|
| Shock resistant | No |
| Degree of protection (IP) | Other |
| Width | 82 mm |
| Height | 226 mm |
| Depth | 57 mm |
| Device width | 82 mm |
| Device height | 226 mm |
| Device depth | 57 mm |
| degree of impact strength (IK) | Not applicable |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Tube diameter for wall mounted product | 16-25 mm |
| Maximum Input cable diameter | 17 mm |
| Entry membrane gland type | Flexible to puncture |
| Cable support | Not applicable |
