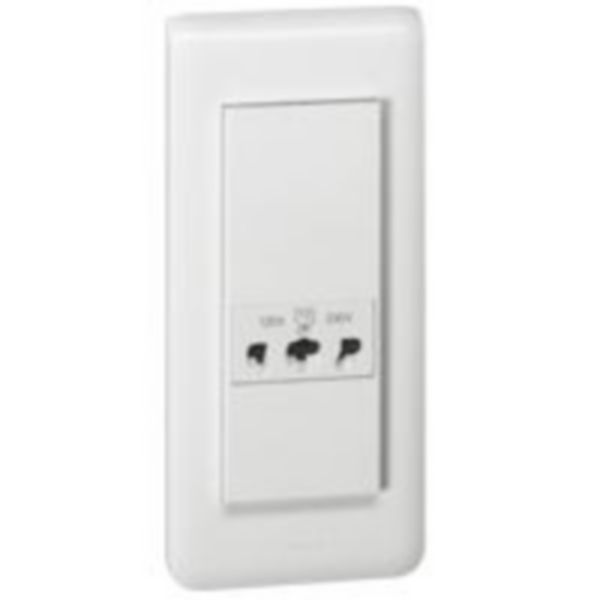

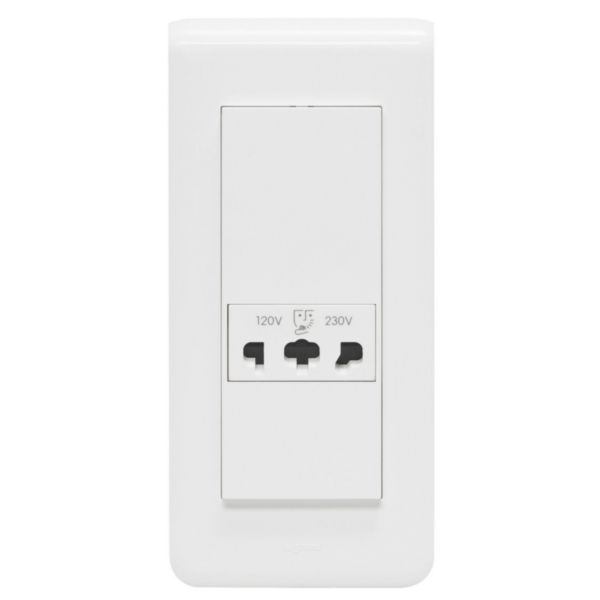

Mosaic™ - Shaver socket - automatic terminals - 5 modules - white
Mosaic™
LEGRAND
Mosaic™ - Shaver socket - automatic terminals - 5 modules - white
REF. 077586
EAN.
3245060775865
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Modular device for domestic switching devices |
|---|---|
| Number of modules (module system) | 5 |
| Mounting method | Flush-mounted |
| With hinged lid | No |
| Voltage reversible | No |
| Nominal voltage low value | 120 V |
| Nominal voltage high value | 230 V |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
|---|---|
| Device width | 82 mm |
| Device height | 175.4 mm |
| Device depth | 50.8 mm |
| With built-in installation box | No |
| Min. depth of built-in installation box | 50 mm |
| Built-in depth | 41 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP24 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Antimicrobial treatment | No |
| Connection type | Push-in clamp |
Documentation
2 documents
Technical Sheet
Technical Sheet
1 document
Catalogue Commercial Page
2 documents
BIM Data
BIM Data
