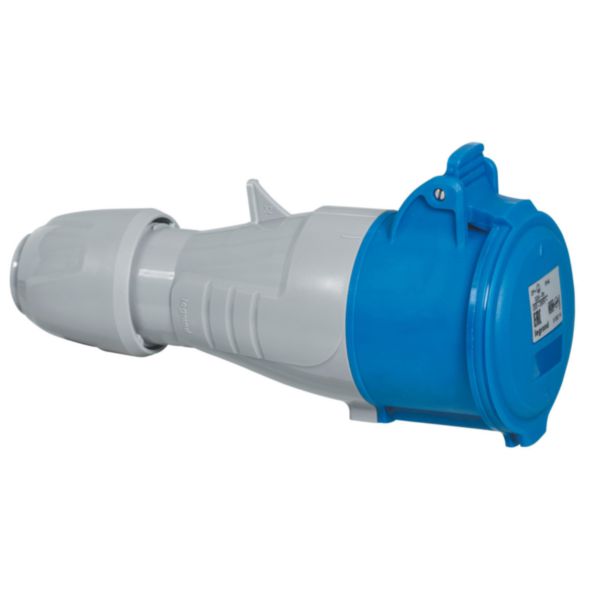

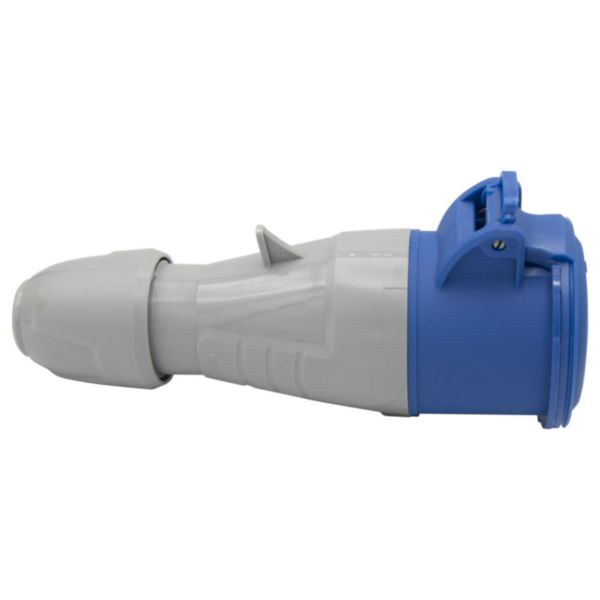

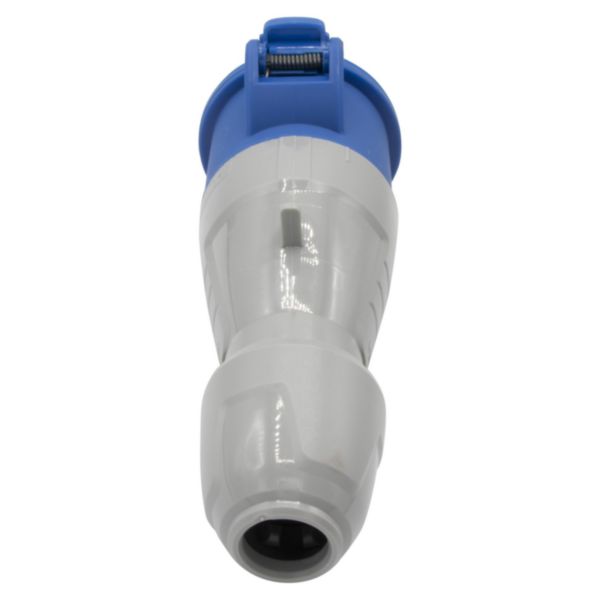

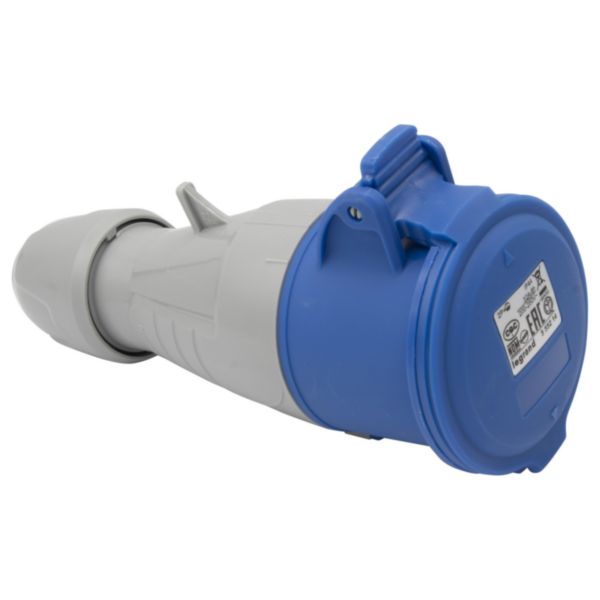

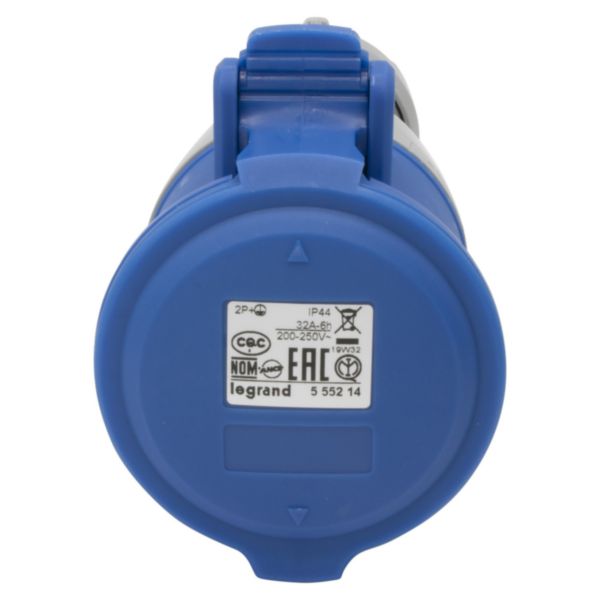

Mobile socket P17 - IP44 - 200/250 V~ - 32 A - 2P+E
P 17 Tempra
LEGRAND
Mobile socket P17 - IP44 - 200/250 V~ - 32 A - 2P+E
REF. 555214
EAN.
3245065552140
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| IEC-amperage | 32 A |
|---|---|
| Number of poles | 3 |
| Voltage according to EN 60309-2 | 200-250 V (50+60 Hz) blue |
| Clock hour position | 6 h |
| Identification colour | Blue |
| RAL-number | 5005 |
| Degree of protection (IP) | IP44 |
|---|---|
| Connection system | Screwed terminal |
| Insert direction | Straight |
| Cable entry | Gland nut |
| Material | Plastic |
| Military model | No |
Documentation
3 documents
Technical Sheet
Instruction Use
Technical Sheet
4 documents
Catalogue Technical Page
Catalogue Technical Page
Catalogue Commercial Page
Catalogue Technical Page
1 document
3D Autocad
