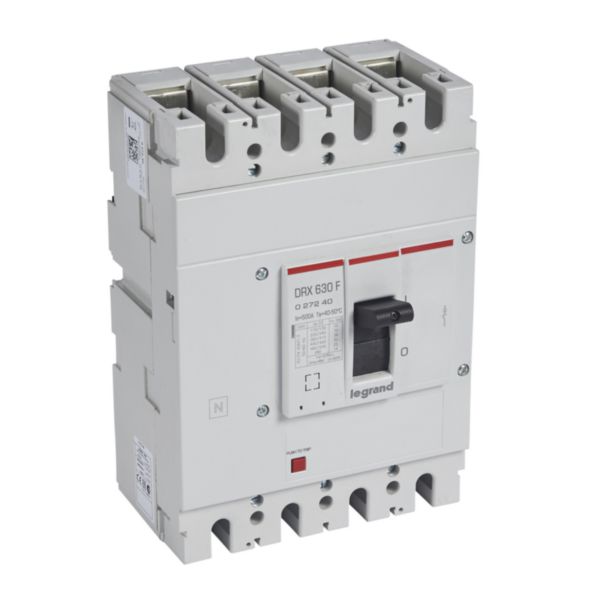

Name: MCCB DRXﾙ 630 - thermal magnetic - 4P - Icu 36 kA (415 V~) - In 500 A
SKU: 027240

MCCB DRXﾙ 630 - thermal magnetic - 4P - Icu 36 kA (415 V~) - In 500 A

LEGRAND

MCCB DRXﾙ 630 - thermal magnetic - 4P - Icu 36 kA (415 V~) - In 500 A

REF. 027240 EAN. 3414970344984

Compare You can only compare 4 products, you must remove 1 to add this one

Rated permanent current Iu	500 A
Rated voltage	110-550 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	36 kA
Overload release current setting	500-500 A
Adjustment range short-term delayed short-circuit release	5000-5000 A
Adjustment range undelayed short-circuit release	5000-5000 A
Device construction	Built-in device fixed built-in technique
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	Yes
DIN rail (top hat rail) mounting optional	Yes

Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as change-over contact	1
With switched-off indicator	Yes
With integrated under voltage release	Yes
Number of poles	4
Position of connection for main current circuit	Front side
Type of control element	Toggle
Complete device with protection unit	Yes
Motor drive integrated	No
Motor drive optional	No
Degree of protection (IP)	IP30
