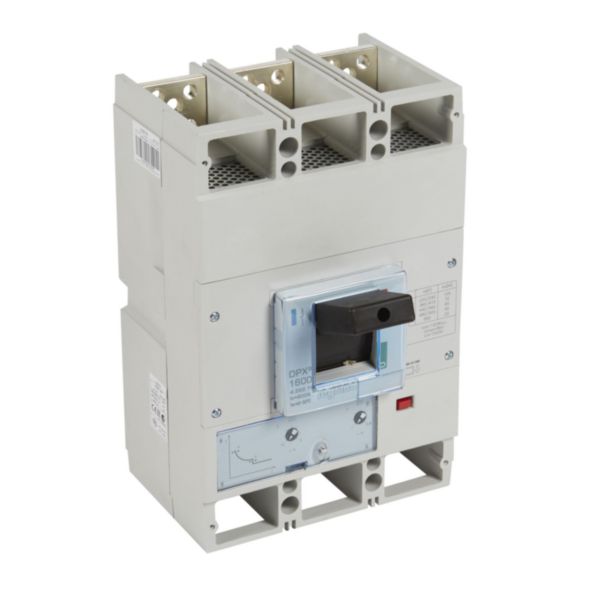

Name: MCCB DPX³ 1600 - thermal magnetic release - 3P - Icu 70 kA (400 V~) - In 800 A
SKU: 422276

MCCB DPX³ 1600 - thermal magnetic release - 3P - Icu 70 kA (400 V~) - In 800 A

LEGRAND

MCCB DPX³ 1600 - thermal magnetic release - 3P - Icu 70 kA (400 V~) - In 800 A

REF. 422276 EAN. 3414970380425

Compare You can only compare 4 products, you must remove 1 to add this one

DPX³ 1600 - thermal magnetic release MCCBs from 630 to 1250 A - Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines - Can be fitted with auxiliaries - Can be used with residual current relays - Supplied complete with : - Connection plates for bars - Insulated shields (phase barriers) - Conform to IEC 60947 - 2 - Sealable adjustment - Can be mounted on plate in XL³ cabinets and enclosures
MCCBs thermal magnetic release fixed version - Thermal adjustable from 0,8 to 1 In - Magnetic adjustable from 5 to 10 In. Breaking capacity Icu 70 kA (400 V~) - 3P - In : 800 A

Rated permanent current Iu	800 A
Rated voltage	220-690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	70 kA
Overload release current setting	640-800 A
Adjustment range undelayed short-circuit release	4000-8000 A
Device construction	Built-in device fixed built-in technique
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	No
DIN rail (top hat rail) mounting optional	No

Number of auxiliary contacts as change-over contact	3
With switched-off indicator	Yes
With integrated under voltage release	Yes
Number of poles	3
Position of connection for main current circuit	Front side
Type of control element	Toggle
Complete device with protection unit	Yes
Motor drive integrated	No
Motor drive optional	Yes
Degree of protection (IP)	IP30
