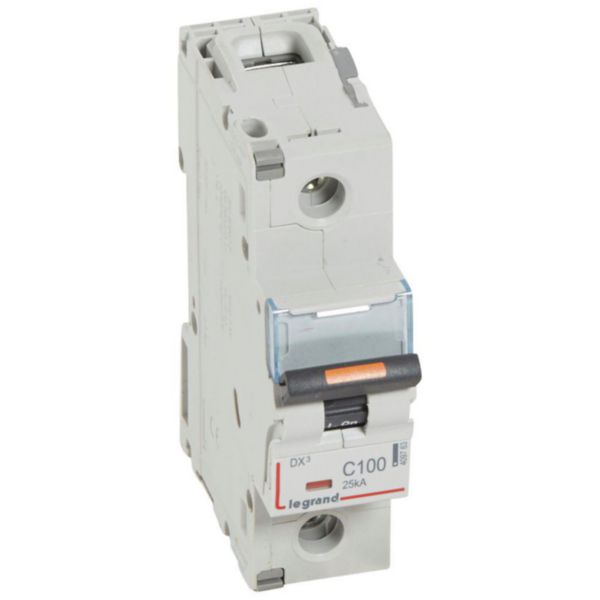

Name: MCB DX3 1 pole 100A curve C
SKU: 409763

MCB DX3 1 pole 100A curve C

DX³ LEGRAND

MCB DX3 1 pole 100A curve C

REF. 409763 EAN. 3245064097635

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity 25kA according to IEC 60947 - 2. Tripping threshold in case of short - circuit between 500A and 1000A (C curve between 5 In and 10 In)
To be supplied by copper cable (top side or bottom side) .
Protected against solid bodies larger than 12,5mm ("fingerproof") : IP20 according to IEC/EN 60529 standard.
Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and accessories. Can be connected to aluminium cable with terminal accessory n° 4 063 11.
This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Built-in depth	47 mm
Vypínací charakteristika	C
Počet pólů (celkem)	1
Počet zabezpečených pólů	1
Rated current	100 A
Jmenovité napětí	230 V
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	6 kV
Druh napětí	AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	25 kA
Frekvence	50-60 Hz
Montáž pod omítku	Yes
Souběžný neutrální vodič	No
Pollution degree	3

Additional equipment possible	Yes
Width in number of modular spacings	1.5
Stupeň krytí (IP)	IP20
Ambient temperature during operating	-25-70 °C
Connectable conductor cross section multi-wired	6-50 mm²
Connectable conductor cross section solid-core	6-70 mm²
Nevýbušné	No
Width	26.7 mm
Height	127.5 mm
Depth	79.2 mm
Rázová pevnost	IK02
Storage temperature	-40-70 °C
Nominal voltage	210-250 V
