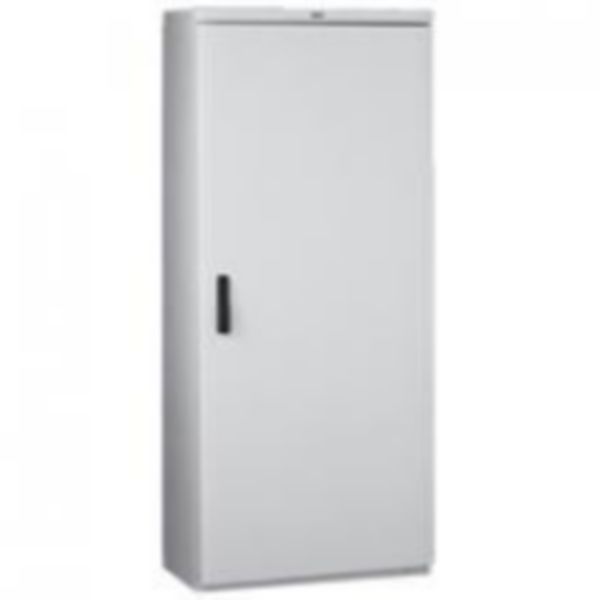

Name: Marina 1860x800x463mm - IP66 IK10
SKU: 036287

Marina 1860x800x463mm - IP66 IK10

Marina LEGRAND

Marina 1860x800x463mm - IP66 IK10

REF. 036287 EAN. 3245060362874

Compare You can only compare 4 products, you must remove 1 to add this one

IP 66 according to the standard EN/IEC 60529 : completely protected against dust and against jets of water of similar force to heavy seas
Excellent resistance to corrosion and chemical agents : 1500h resistance to salt spray
One-piece molded body, reversible cabinet
RAL 7035 suitable for industrial environments

Recommended for industrial environments with aggressive constraints : corrosion and harsh weather conditions.

Double-bar lock. Equipped with universal lugs at the rear of the cabinets to facilitate the installation of accessories Autocentric of equipments

Can be equipped with a wide range of dedicated accessories : plain or perforated plates, plinths, cable-entry plates, plain or glass doors, etc.

Mounting method	Surface mounted
Type of covering	Door
Cover model	Closed
Type of door	Single
Transparent cover/door	No
With lock	Yes
Height	1860 mm
Width	800 mm
Depth	463 mm
Built-in depth	487 mm
Inner depth	380 mm
Material plate thickness cabinet	4 mm
Material plate thickness door/cover	4 mm

Colour	Grey
RAL-number	7035
Number of openings for flange plates	2
Extension possible	No
Housing material	Plastic
Surface protection	Untreated
With mounting plate	No
Suitable for outdoor use	Yes
Suitable for lightning protection	Yes
Degree of protection (IP)	IP66
Protection class	II
Degree of impact strength (IK)	IK10
Circuit integrity	None

Marina 1860x800x463mm - IP66 IK10
