Mallia Senses - HDMI socket outlet with USB A data socket transfer - Matt Black
Mallia Senses
LEGRAND

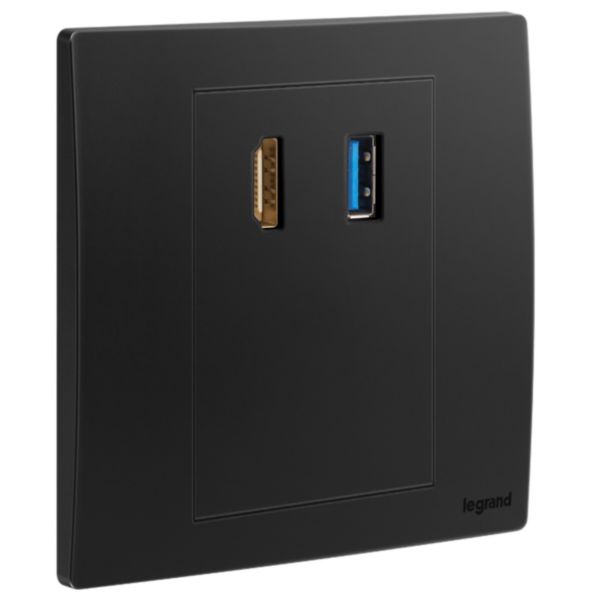

Mallia Senses - HDMI socket outlet with USB A data socket transfer - Matt Black
REF. 281021MB
EAN.
3414972090162
The HDMI socket Mallia Senses allows to connect external devices through HDMI connector. Data transfer is also possible through the USB A type socket
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Basic element with full cover plate |
|---|---|
| Utilization | HDMI |
| Support ring | No |
| With dust cover | No |
| With hinged lid | No |
| Outlet direction | Straight |
| Contact type | Female |
| Imprintable label | Without indication field |
| With imprint | No |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Black |
| Transparent | No |
| Type of fastening | Engage (snap) |
|---|---|
| With buses/couplings | Yes |
| Suitable for number of connectors | 2 |
| Isolated connections | No |
| With strain relief | No |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | Yes |
| With lighting | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 38.8 mm |
| Min. depth of built-in installation box | 40 mm |
| Built-in depth | 32.1 mm |
| Operating / setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
