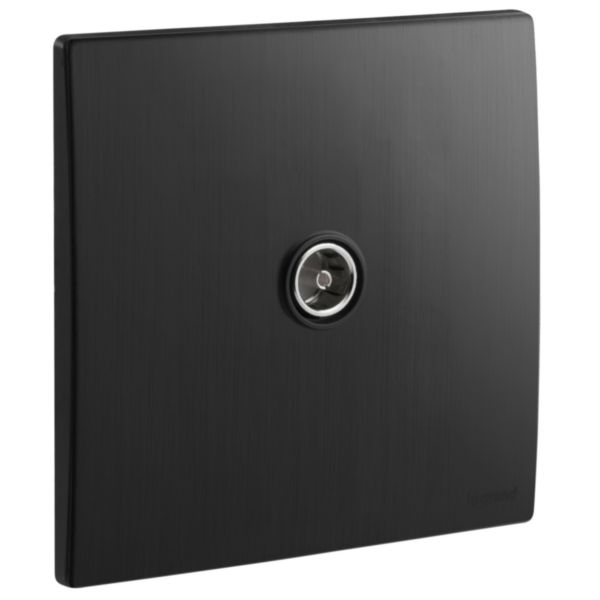

Mallia Senses - 1 gang male terminal TV socket outlet - Brushed Black
Mallia Senses
LEGRAND
Mallia Senses - 1 gang male terminal TV socket outlet - Brushed Black
REF. 281154BB
EAN.
3414972085908
Allows to connect conventional televisions (new standard Female plug)
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | End socket |
|---|---|
| Type of socket outlet | TV |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Cover | Full cover plate |
| Number of outlets | 1 |
| Type of fastening | Mounting with screw |
| Colour | Black |
| Surface protection | Metallic |
| Surface finishing | Matt |
| Material | Metal |
| Material quality | Aluminium |
|---|---|
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 32.2 mm |
| Min. depth of built-in installation box | 24 mm |
| Operating / setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
