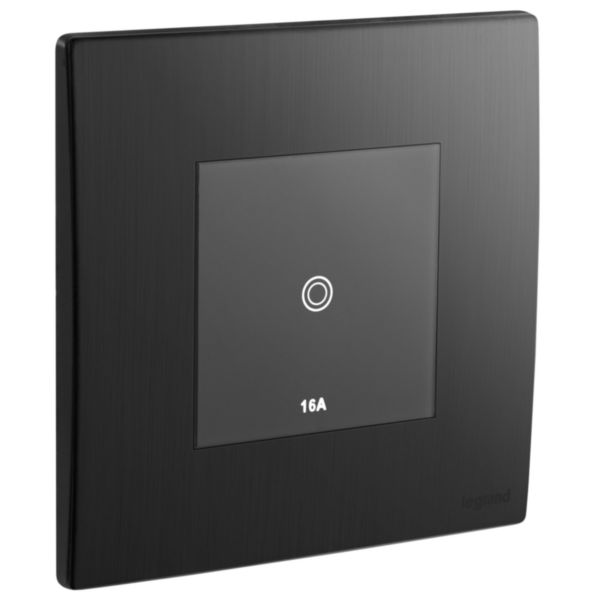

Mallia Senses - 1 gang 1 way touch switch 16AX - Brushed Black
Mallia Senses
LEGRAND
Mallia Senses - 1 gang 1 way touch switch 16AX - Brushed Black
REF. 281200BB
EAN.
3414972062718
This tactile switch is suitable for several everyday uses : lighting or door opening.
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Basic element with full cover plate |
|---|---|
| Model | Relay |
| Type of load | Universal and LED Retrofit |
| Substation input | No |
| Light value memory | Yes |
| Applicable with button | No |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | Yes |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Flush-mounted |
| Material | Metal |
| Material quality | Aluminium |
| Surface protection | Metallic |
| Surface finishing | Matt |
| Colour | Black |
| Transparent | No |
| Nominal voltage | 240 V |
| Frequency | 50-60 Hz |
| Rated current | 16 A |
| Switch capacity | 0-3000 W |
| Number of channels | 1 |
| Type of fastening | Mounting with screw |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
|---|---|
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Width | 86 mm |
| Height | 41.35 mm |
| Depth | 86 mm |
| Built-in depth | 31.9 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -20-70 °C |
| Standby consumption | 1 mA |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Number of terminals | 4 |
| Terminals capacity | 1-4 mm² |
| Cable section | 1-4 mm² |
| Label space/information surface | No |
| Contains Batteries and/or Accumulator | No |
| Connected object | No |
Documentation
2 documents
Technical Sheet
Instruction Use
1 document
Catalogue Commercial Page
1 document
Agreement
OC / CB-CN49059-A1/M2
