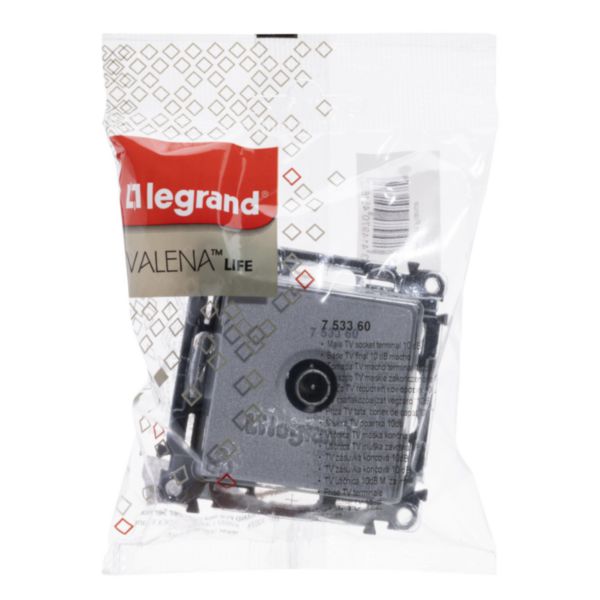

Male TV terminal socket Valena Life - attenuation 10 dB French - aluminium

Name: Male TV terminal socket Valena Life - attenuation 10 dB French - aluminium
SKU: 753360

Valena Life Legrand

REF. 753360 EAN. 3414970451682

Compare You can only compare 4 products, you must remove 1 to add this one

Valena™ Life - TV sockets with cover plate - Valena In’Matic mechanisms supplied with cover plates and support frames - To be equipped with plates - Supplied with mounted dust protection transparent shield - Flowpack packaging: robust protection to ensure optimum operation
Terminal TV sockets - Installation in case of maintenance - An amplifier and line balancing are recommended - TV male connector (Ø9.5 mm): 5-68/120-862 MHz - R female connector (Ø9.5 mm): 87.5 - 108 MHz - SAT "F" type connector: 950-2400 MHz - Recommended coaxial cable: - Visual check of the connection - 1 input with 1 resistance cap socket -10 dBMale TV sockets - Attenuation: 10 dB - Aluminium

Model	End socket
Type of socket outlet	TV
DAB+	No
Mounting method	Flush-mounted
Tap loss at 860 MHz	10 dB
Number of outlets	1
Suitable for cable modem	No
Suitable for remote power supply	No
Colour	Aluminium
Surface protection	Lacquered
Surface finishing	Matt
Material	Plastic

Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
Degree of impact strength (IK)	IK04
Device width	74.6 mm
Device height	74.6 mm
Device depth	27.2 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature	5-45 °C
Storage temperature	-25-70 °C
