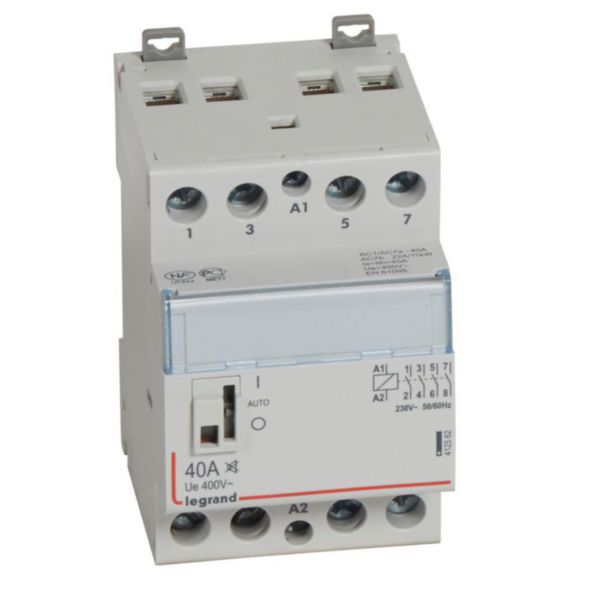

Name: Low noise contactor CX³ with front face handle42 pole - 40A - 400V~ - 4 NO contacts with 230V~ coil - 3 modules
SKU: 412562

Low noise contactor CX³ with front face handle42 pole - 40A - 400V~ - 4 NO contacts with 230V~ coil - 3 modules

CX³ LEGRAND

Low noise contactor CX³ with front face handle42 pole - 40A - 400V~ - 4 NO contacts with 230V~ coil - 3 modules

REF. 412562 EAN. 3245064125628

Compare You can only compare 4 products, you must remove 1 to add this one

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Easy integration: fitted with two DIN rail clamps, one top side and one bottom side to ease the clipping. Allows the insertion of prong busbar at the top side.

Equipped with a front face handle to get the possibility to also control it on-site directly on the device itself (test and repair function). Permanent ON or OFF wihout automatic reset.Also Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.

Rated operating voltage	400-400 V
Rated operation current	40 A
Rated excitation voltage	195-253 V
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Number of contacts as normally open contact	4
Number of contacts as normally closed contact	0
Max. incandescent lamp load	5000 W
Max. load fluorescent lamp	3100 VA
Max. load fluorescent lamp (Duo circuit)	3400 VA

Max. load fluorescent lamp (parallel compensated)	1400 VA
Slider for hand switch	Yes
Width in number of modular spacings	3
Built-in depth	44 mm
Additional equipment possible	Yes
Degree of protection (IP)	IP2X
Width	68 mm
Height	94 mm
Depth	53.4 mm

Low noise contactor CX³ with front face handle42 pole - 40A - 400V~ - 4 NO contacts with 230V~ coil - 3 modules
