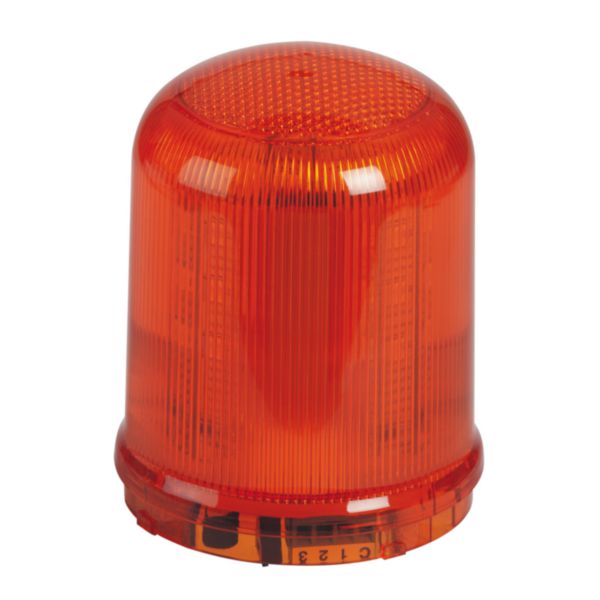

Large size LED beacon to be equipped with base - 20 Candelas - IP65 IK08 - Orange

LEGRAND

Large size LED beacon to be equipped with base - 20 Candelas - IP65 IK08 - Orange

REF. 041392 EAN. 3414971498143
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Function flashlight Yes
Function blinking light Yes
Function continuous light Yes
Function rotating light Yes
Function pulsating light Yes
With infrared No
Nominal voltage 12-12 V
Voltage type AC/DC
Electricity consumption 0.27 A
Power 2.58 W
Colour of lamp hood Orange
Housing material Plastic
Housing colour Other
Mounting method Surface mounting
Solar operation No
Number of modes 3
Approved according to ICAO No
Ambient temperature -30-+55 °C
Lamp type LED not exchangeable
Luminous intensity 7-7 cd
Degree of protection (IP) IP65
Width 92 mm
Height 107.5 mm
Dimmable No

Documentation

1 document
Instruction Use
LE10702AB.pdf pdf (1.75 Mo)
2 documents
Catalogue Technical Page
ex223001_0533.pdf pdf (0.07 Mo)
Catalogue Commercial Page
ex223001_0552.pdf pdf (0.09 Mo)
