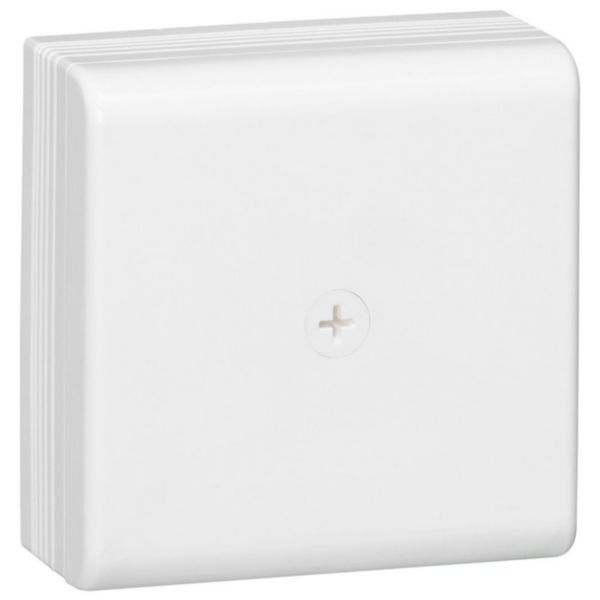

Junction box for DLPlus mini-trunking 150x150x65mm

DLPlus LEGRAND

Junction box for DLPlus mini-trunking 150x150x65mm

REF. 030336 EAN. 3245060303365
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Dimensions : 150x150x65mm
  • Respect the protection index
  • Colour : white

The product's benefits

Installation
  • Fixing grid inside the box (use screws). Frame precut in height and width corresponding to the heights and widths of the mini-trunking
Usage
  • Allows derivations on the 4 sides of the box: center, left or right, or angle

Technical characteristics

Length 150 mm
Width 150 mm
Depth 65 mm
Material Plastic
Colour White
RAL-number 9003
Halogen free Yes
Mounting method Surface mounted

Documentation

2 documents
Technical Sheet
f6036afr.pdf pdf (0.02 Mo)
Instruction Use
104870160_03.pdf pdf (0.06 Mo)
1 document
Catalogue Commercial Page
ex223001_1047.pdf pdf (0.16 Mo)
