Name: Isolating switch DX3-IS 4 pole 63A
SKU: 406481

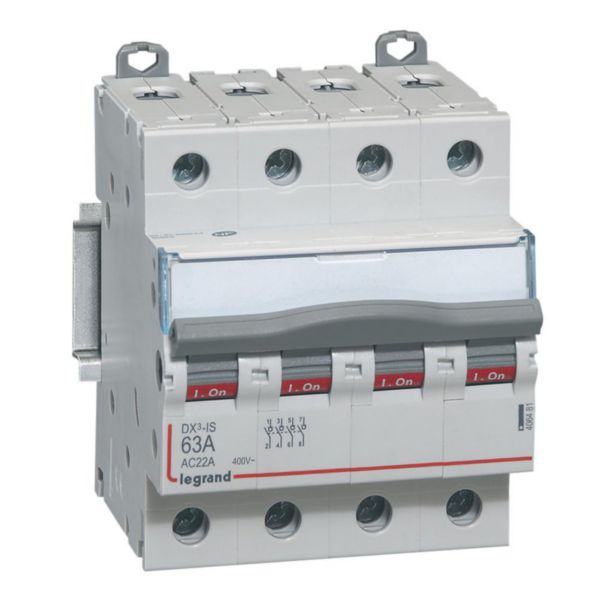

Isolating switch DX3-IS 4 pole 63A

DX³ LEGRAND

Isolating switch DX3-IS 4 pole 63A

REF. 406481 EAN. 3245064064811

Compare You can only compare 4 products, you must remove 1 to add this one

Rated current 63 A Category of use AC - 22A Rated voltage 400V~
Can be supplied either by copper cable, prong busbar (top side or bottom side).
Can be equipped with Legrand DX3 auxiliaries and Accessories .
Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.
This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Fitted with DIN rail clamps, on top side and on bottom side to facilitate the installation on the DIN rail.

Fitted with a label holder allowing a clear, visible and convenient identification of the circuit. ON and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the contacts.

Version as main switch	Yes
Version as maintenance-/service switch	No
Version as safety switch	Yes
Version as emergency stop installation	No
Max. rated operation voltage Ue AC	400 V
Rated permanent current Iu	63 A
Conditioned rated short-circuit current Iq	4500 kA
Number of poles	4
Motor drive optional	No
Motor drive integrated	No

Device construction	Built-in device fixed built-in technique
Suitable for floor mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Type of control element	Toggle
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP20
