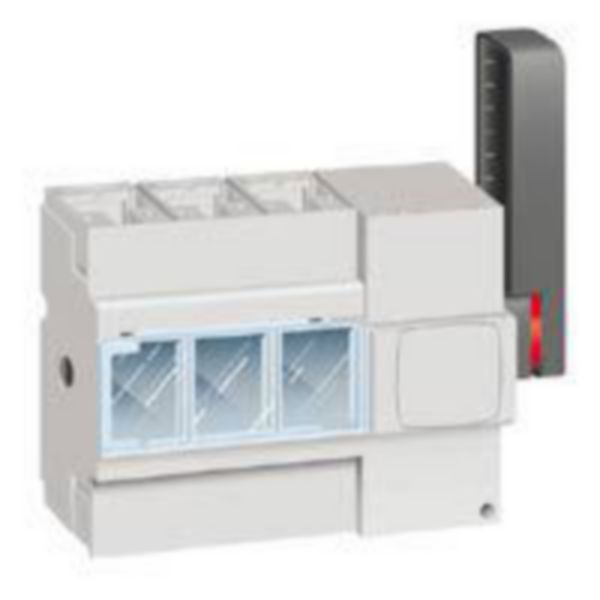

Name: Isolating switch - DPX-IS 250 with release - 3P - 250 A - right-hand side handle
SKU: 026643

Isolating switch - DPX-IS 250 with release - 3P - 250 A - right-hand side handle

LEGRAND

Isolating switch - DPX-IS 250 with release - 3P - 250 A - right-hand side handle

REF. 026643 EAN. 3245060266431

Compare You can only compare 4 products, you must remove 1 to add this one

DPX - IS 250 isolating switches - 63 to 250 A - Isolating switches for on - load circuit breaking by visible isolation and positive action of the contacts - Padlock integrated in the handle - Connection with cage terminals - Supplied with terminal shields - Conform to IEC 60947 - 3 - Category of use AC 23 A - Accept electrical auxiliaries - Can be mounted on rail or on plate in XL³ enclosures
DPX - IS with release - Can be associated with a residual current relay with separate coils, supplied without shunt trip Right - hand side handle - 3P - 250 A

Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	Yes
Version as emergency stop installation	Yes
Version as reversing switch	No
Max. rated operation voltage Ue AC	690 V
Rated operating voltage	230-690 V
Rated permanent current Iu	250 A
Rated permanent current at AC-21, 400 V	250 A
Rated short-time withstand current lcw	9 kA
Rated operation power at AC-23, 400 V	100 kW
Conditioned rated short-circuit current Iq	100 kA
Number of poles	3
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0

Number of auxiliary contacts as change-over contact	3
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	Yes
Device construction	Complete device in housing
Suitable for floor mounting	Yes
Suitable for front mounting 4-hole	Yes
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Colour control element	Black
Type of control element	Rocker lever
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP20
