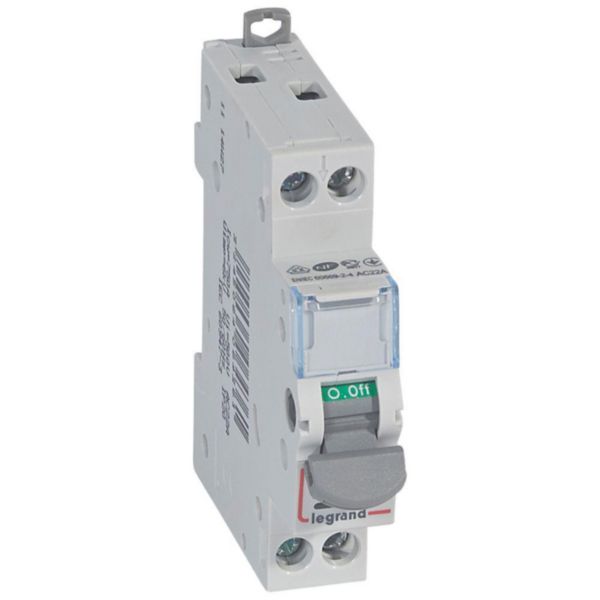

Name: Isolating switch - 2P with indicator 250 V~ - 20 A
SKU: 406436

Isolating switch - 2P with indicator 250 V~ - 20 A

LEGRAND

Isolating switch - 2P with indicator 250 V~ - 20 A

REF. 406436 EAN. 3245064064361

Compare You can only compare 4 products, you must remove 1 to add this one

Isolating switches DX³ - IS - from 16 A to 125 A - Double break contacts
Isolating switches - Grey handle - AC 22 A - Can be equipped with 1 DX³ signalling auxiliary 2P with indicator - 400 V~ - Supplied with lamp - Do not accept auxiliaries - Compatible with prong - type supply busbars - Nominal rating In : 20 A - Number of modules : 1

Version as main switch	Yes
Version as maintenance-/service switch	No
Version as safety switch	Yes
Version as emergency stop installation	No
Max. rated operation voltage Ue AC	400 V
Rated permanent current Iu	20 A
Conditioned rated short-circuit current Iq	4500 kA
Number of poles	2
Motor drive optional	No
Motor drive integrated	No

Device construction	Built-in device fixed built-in technique
Suitable for floor mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Type of control element	Toggle
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP20

Isolating switch - 2P with indicator 250 V~ - 20 A
