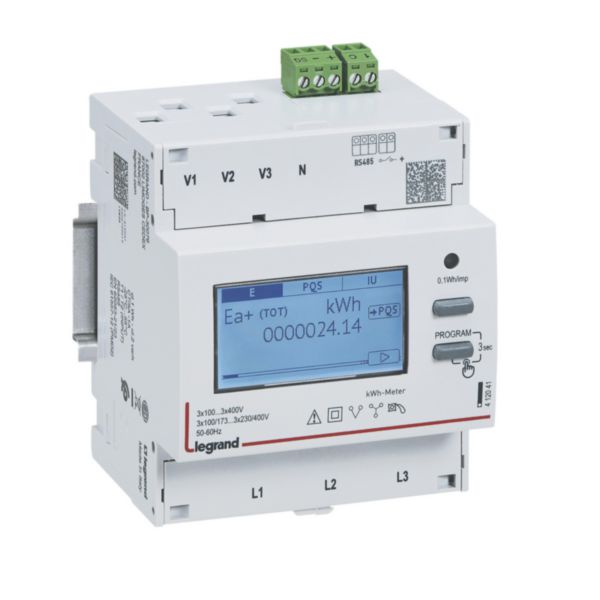

Name: EMDX3 energy meter tri 5A 230/400V RS485 2TARIFF MID
SKU: 412043

EMDX3 energy meter tri 5A 230/400V RS485 2TARIFF MID

EMDX³ LEGRAND

EMDX3 energy meter tri 5A 230/400V RS485 2TARIFF MID

REF. 412043 EAN. 3414971413771

Compare You can only compare 4 products, you must remove 1 to add this one

Connection with CT up to 5A.
Communication : Modbus RS 485.
Double tariff or Pulse input to collect other meter (gas, water, electrical meters).
MID Certified.
Bidirectional measure of production and consumption energies.

Easy connection of communication thanks to removable connectors. One input connector for double tariff or Pulse input to collect water or gas meters without using added concentrator device.

Backlit display and simple access to easy reading of data. Pre-visualization of parameters. Settings mode protected by user code Bidirectional measure of production and consumption energies

Type of meter	Electronic
Nominal current (In)	5 A
Max. current (Imax)	6 A
Nominal voltage (Un) N-L	197-265 V
Nominal voltage (Un) L-L	340-460 V
Frequency	49-61 Hz
Accuracy class	B
Pole type	Three conductor/four conductor
Model	Measurement transformer
Energy type	Effective power and blind power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	External
Measurement type load profile	No
Escapement mechanism	Yes
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	None
Type of indication	Digital
Mounting method	DRA (DIN-rail adapter)

Width in number of modular spacings	4
Width	71.2 mm
Depth	66 mm
Height	92.4 mm
Type of interface	RS-485
With lock code	Yes
Number of positions total (counter)	9
Degree of protection (IP)	IP54
Operating / setting temperature	-25-55 °C
Storage temperature	-25-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Screwed terminal
Terminals capacity	1-16 mm²
Label space/information surface	No
Connected object	No
