DPX³250 thermal magnetic release circuit breaker, 4 poles 200A and breaking capacity 25kA
DPX³ 250
LEGRAND

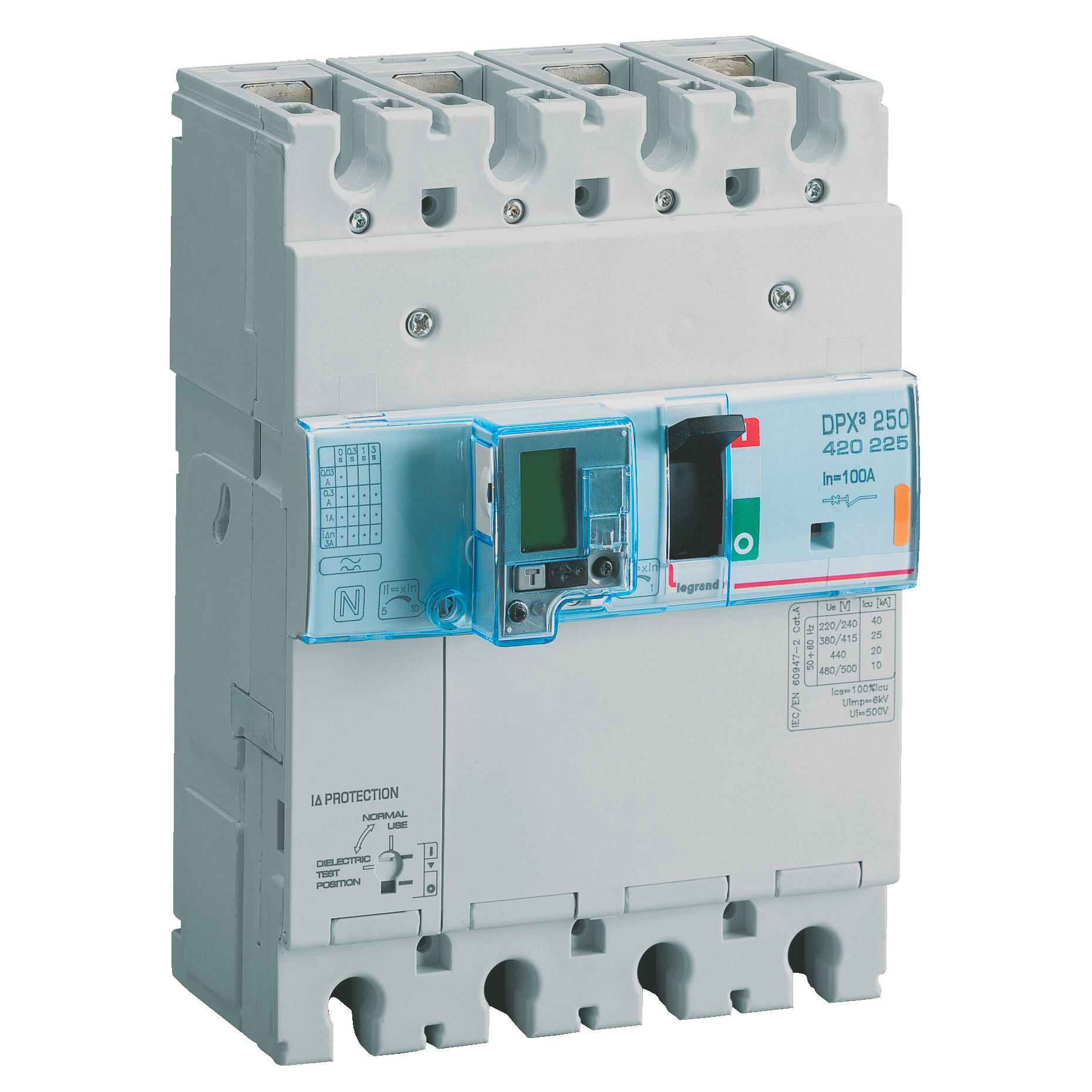

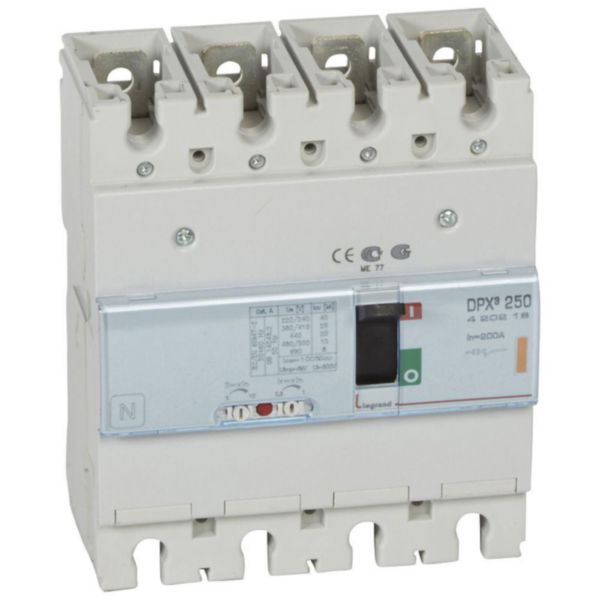

DPX³250 thermal magnetic release circuit breaker, 4 poles 200A and breaking capacity 25kA
REF. 420218
EAN.
3245064202183
DPX³, moulded case circuit breaker for switching, control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Rated permanent current Iu | 200 A |
|---|---|
| Rated voltage | 220-690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 25 kA |
| Overload release current setting | 160-200 A |
| Adjustment range short-term delayed short-circuit release | 1000-2000 A |
| Adjustment range undelayed short-circuit release | 1000-2000 A |
| Device construction | Built-in device fixed built-in technique |
| Integrated earth fault protection | No |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Number of auxiliary contacts as normally closed contact | 1 |
|---|---|
| Number of auxiliary contacts as change-over contact | 1 |
| With switched-off indicator | Yes |
| With integrated under voltage release | Yes |
| Number of poles | 4 |
| Position of connection for main current circuit | Front side |
| Type of control element | Toggle |
| Complete device with protection unit | Yes |
| Motor drive integrated | No |
| Motor drive optional | Yes |
| Degree of protection (IP) | IP30 |
Documentation
6 documents
Workshop Book
Workshop Book
Instruction Use
Technical Guide
Technical Sheet
Technical Sheet
3 documents
Catalogue Commercial Page
Catalogue Technical Page
Catalogue Technical Page
1 document
3D Autocad
5 documents
PEP
Agreement
OC / CB-SE-101779
(0.1 Mo)
Constructor Declaration
Agreement
OC / CB-71485
(2.57 Mo)
PEP
