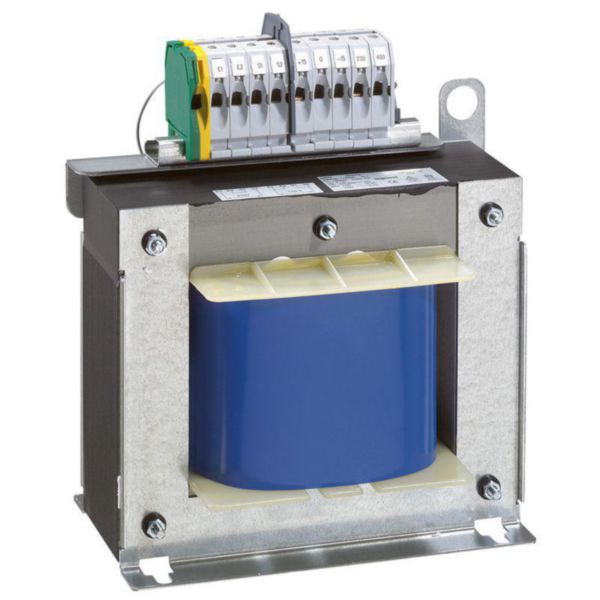

Name: Control and signal. transfo - 1 Ph - prim 460 V sec 115/230 V -2500 VA-screw
SKU: 044290

Control and signal. transfo - 1 Ph - prim 460 V sec 115/230 V -2500 VA-screw

LEGRAND

Control and signal. transfo - 1 Ph - prim 460 V sec 115/230 V -2500 VA-screw

REF. 044290 EAN. 3245060442903

Compare You can only compare 4 products, you must remove 1 to add this one

Control, safety and circuit isolation transformers - single-phase - IP 2X or XXB up to 400 VA (coupling strip not mounted) - IP XXA over 400 VA - IK 04 - Conform to IEC EN 61558 - 2 - 2 and 2 - 4 or 2 - 6, UL506 and CSA C22 - 2 - No 66 - UL USA and Canada agreements - Products suitable for building equipment conforming to standards EN 61131 - 2, EN 60204 - 1 and EN 60439 - 1 - Active parts protected by cover up to 1000 VA - Interference filtering (except Cat.Nos 0 442 16/17/18) - Direct fixing possibility on symmetrical rail up to 250 VA - Supplied with coupling strip 0 V secondary / earth up to 1000 VA (except spring connection range)
Control and circuit isolation - screw connectionInput voltage = 460 V ± 20 V~ Output voltage = 115 - 230 V~ - Supplied with 2 coupling strips - Power in VA according to IEC and CSA : 2500 - Power in VA according to UL : 1300 - Instantaneous admissible power at cos Ï = 0,5 : 7100

Built as safety transformer	No
Built as isolating transformer	Yes
Built as energy saving transformer	No
Primary voltage 1	440-440 V
Primary voltage 2	460-460 V
Primary voltage 3	480-480 V
Secondary voltage 1	115-115 V
Secondary voltage 2	230-230 V
Rated apparent power	2500 VA
Type of insulation material according to IEC 85	B
Short-circuit-proof	No
Relative short circuit voltage	1.66 %

Width	300 mm
Height	292 mm
Depth	171 mm
Degree of protection (IP)	Other
Ring core	No
Suitable for mounting on PCB	No
Modular version	No
Degree of impact strength (IK)	IK04
Voltage type	AC
Terminal marking indication	Yes
Connection type	Screwed terminal
