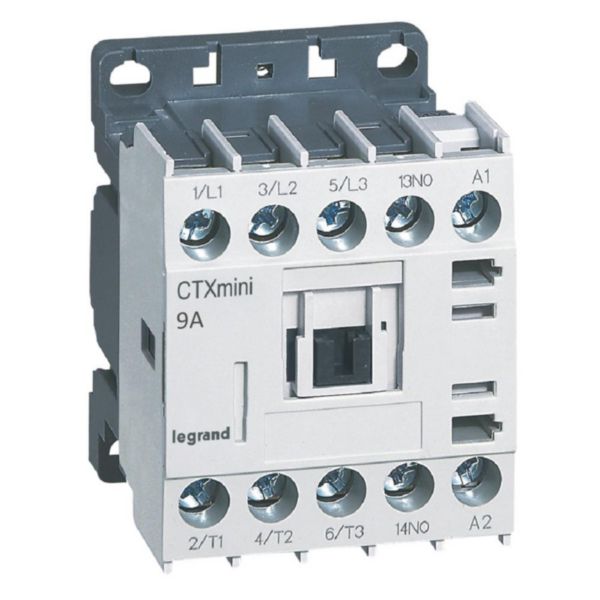

Name: Contactor CTX3 mini 3P 9A 1NO 230V AC
SKU: 417026

Contactor CTX3 mini 3P 9A 1NO 230V AC

CTX³ LEGRAND

Contactor CTX3 mini 3P 9A 1NO 230V AC

REF. 417026 EAN. 3414970404077

Compare You can only compare 4 products, you must remove 1 to add this one

Rating 9A (AC - 3) for the switching of 3 - ph motors up to 4 kW (415V). Resistive loads up to 20A (AC - 1).
Screw terminals capacity : Power 2 x 1,25mm² to 2mm² / Coil 0,75mm² to 2,5mm² / Aux. Circuit 0,75mm² to 2,5mm²
1NO auxiliary contact. Can be equipped with all Legrand CTX3 mini auxiliaries and Accessories .
Endurance: up to 12 million mechanical operations and 1 million electrical operations. Number of operation cycles (AC-3) per hour : 1800.
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

Rated control supply voltage AC 50 Hz	195.5-253 V
Rated control supply voltage AC 60 Hz	195.5-253 V
Voltage type for actuating	AC
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Type of electrical connection of main circuit	Cable clamp

Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-3, 400 V	9 A
Rated operation power at AC-3, 400 V	4 kW
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	0
Modular version	Yes
