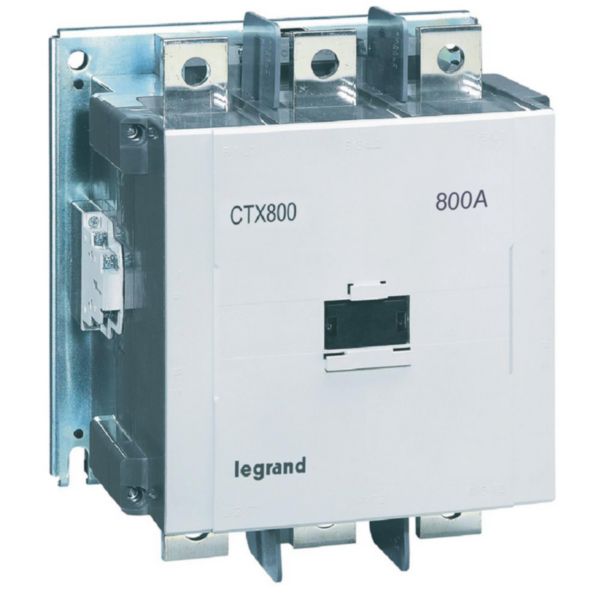

Name: Contactor CTX3 3P 800A 380V-450V AC
SKU: 416359

Contactor CTX3 3P 800A 380V-450V AC

CTX³ LEGRAND

Contactor CTX3 3P 800A 380V-450V AC

REF. 416359 EAN. 3414970403636

Compare You can only compare 4 products, you must remove 1 to add this one

Rating 800A (AC - 3) for the switching of 3 - ph motors up to 440 kW (415V). Resistive loads up to 900A (AC - 1).
Screw terminals capacity : Power M16 screws / Coil 1,25mm² to 5,5mm² / Aux. Circuit 1,25mm² to 5,5mm²
2NO + 2NC auxiliary contacts. NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard. Can be equipped with all Legrand CTX3 auxiliaries and Accessories .
Endurance: up to 2 million mechanical operations and 0,5 million electrical operations. Number of operation cycles (AC-3) per hour : 1200.
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

Fitted with 2NO + 2NC auxiliary contacts, factory assembled. Engineered to allow an easy replacement of the coil.

Rated control supply voltage AC 50 Hz	323-418 V
Rated control supply voltage AC 60 Hz	323-418 V
Voltage type for actuating	AC
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Type of electrical connection of main circuit	Screw connection
Rated operation current Ie at AC-1, 400 V	900 A

Rated operation current Ie at AC-3, 400 V	800 A
Rated operation power at AC-3, 400 V	440 kW
Rated operation current Ie at AC-4, 400 V	630 A
Rated operation power at AC-4, 400 V	300 kW
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Suitable for distribution board	No
