Name: Circuit breaker DPX³ 1600 4 poles,rated current of 1250A and S10 electronic protection unit
SKU: 422988

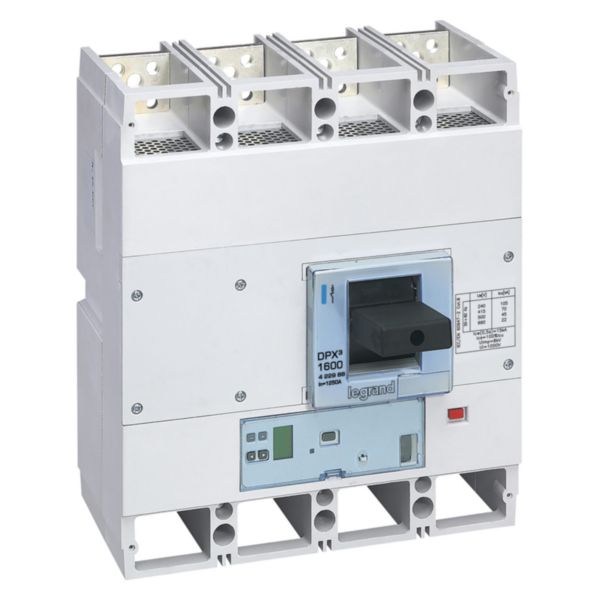

Circuit breaker DPX³ 1600 4 poles,rated current of 1250A and S10 electronic protection unit

DPX³ 1600 LEGRAND

Circuit breaker DPX³ 1600 4 poles,rated current of 1250A and S10 electronic protection unit

REF. 422988 EAN. 3414972259293

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity of 70kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrial installations. Rated insulation voltage of 1000V. Rated impulse withstand voltage of 8kV
Compliat with NEMA AB‐1. Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature, humidity, vibration, shock and salt mist.
Completely flexible regolation of the protection unit by dedicates App and software for thermal and magnetic currents and times Thermal protection within range of 0,4 - 1,0 of the rated current. Magnetic protection within range of 1,5 - 10 of the rated current.
Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts. Can used with rotary handles or motor operator. Locking accessories are available.
Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals. Is available also in a plug-in version or draw-out configuration (circuit breaker fitted with special terminals and mounted on a plug-in base).

DPX³ platform has been developed to give a new solution of protection devices for a more precise approach in power installations in order to offer the correct answer for different project needs.

DPX³ platform provide a complete "project" approach in premium market segment, offering a range completely suitable for high power application

DPX³ 1600 is the answer for the competition in the project sub-segment. A unique size for all versions (thermal magnetic, electronic with or without measure).
Adjustment of Ir, Isd, Ii, Ig, tr, tsd, tg directly on the MCCB or via software/App For connection to the App add a Bluetooth communication key ref. LG-028310 Green indicator lamp. Connector for test unit Logical selectivity For 4P version: adjustment of neutral on front panel or by software or App
EnerUp + Project App for smartphone and tablet available on Apple Store and Google Play Configuration, monitoring and management software (PCS) available for download via e-catalogue (does not require the use of Bluetooth communication key ref. LG-028310

Rated permanent current Iu	1250 A
Rated voltage	220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	70 kA
Overload release current setting	250-1250 A
Adjustment range short-term delayed short-circuit release	1875-12500 A
Adjustment range undelayed short-circuit release	15.000-15.000 A
Device construction	Built-in device fixed built-in technique
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	No
DIN rail (top hat rail) mounting optional	No
Number of auxiliary contacts as change-over contact	3
With switched-off indicator	Yes
With integrated under voltage release	Yes
Number of poles	4
Position of connection for main current circuit	Front side
Type of control element	Toggle
Complete device with protection unit	Yes
Motor drive integrated	No

Motor drive optional	Yes
Degree of protection (IP)	IP30
Width	280 mm
Height	320 mm
Depth	215 mm
Operating / setting temperature	-5-70 °C
Storage temperature	-40-85 °C
Voltage type	AC
Frequency	50-60 Hz
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Colour	Grey
RAL-number	7035
Halogen free	Yes
Terminals capacity	120-800 mm²
Cable nature for connection	Rigid
Label space/information surface	Yes
Contains Batteries and/or Accumulator	Yes
