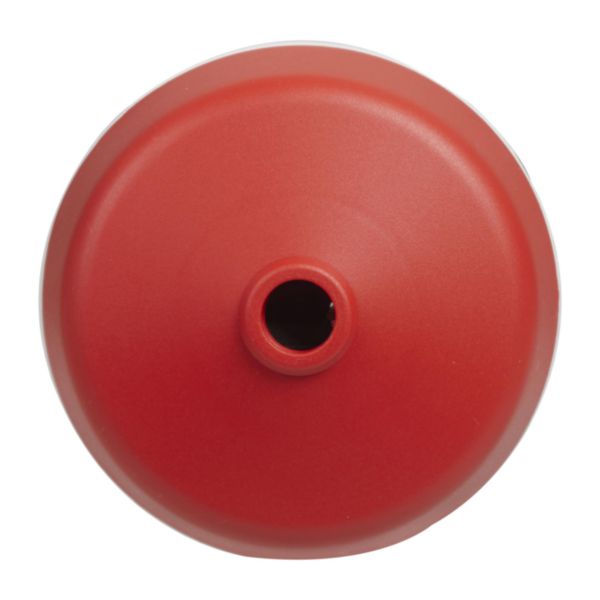

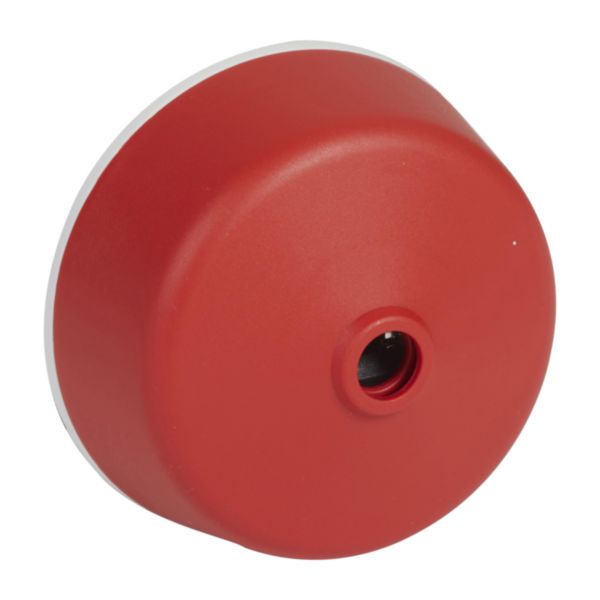

Ceiling rose with plug-in connection - 4 pin red - fire resistant UL94 Vo

Name: Ceiling rose with plug-in connection - 4 pin red - fire resistant UL94 Vo
SKU: 060197

LEGRAND

REF. 060197 EAN. 3414971217010

Compare You can only compare 4 products, you must remove 1 to add this one

Lighting equipment
Ceiling roses - terminals : 5 x 0,75 mm², 3 x 1.5 mm², 2 x 2.5 mm², 2 x 4 mm² - Strong load grips support : up to 5 kgWith plug - in connection - 4 pin red. Fire resistant UL 94 Vo

Model	Ceiling lamp holder
Material	Plastic
Colour	Other
Depth	43 mm
Lamp holder	Other
Type of fastening	Screw mounting
With bracket	No
With starter insertion	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

IFTTT support available	No
Width	75 mm
Height	75 mm
Degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature	-5-40 °C
Storage temperature	-5-60 °C
Voltage type	AC
Nominal voltage	250-250 V
Supply current	6-6 A
Halogen free	Yes
