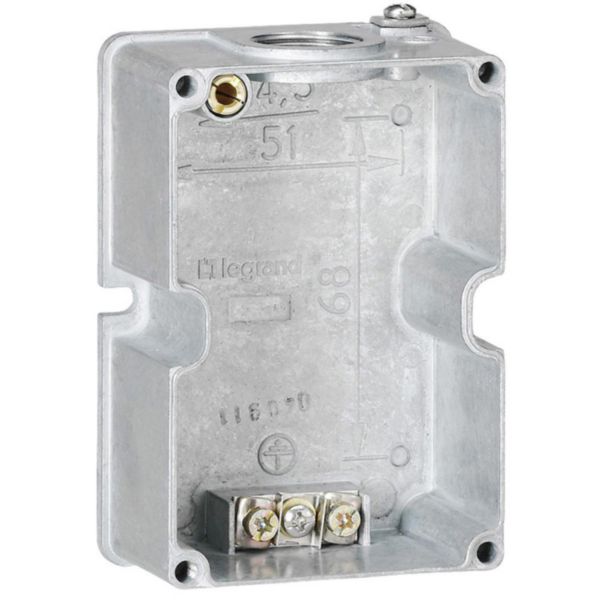

Box Hypra - IP 44 - for surface appliance inlet 3P+E / 3P+N+E - 16 A - metal

Name: Box Hypra - IP 44 - for surface appliance inlet 3P+E / 3P+N+E - 16 A - metal
SKU: 052269

Hypra LEGRAND

REF. 052269 EAN. 3245060522698

Compare You can only compare 4 products, you must remove 1 to add this one

Hypra IP 44 sockets and plugs metal, plastic, rubber, IP 44/55 Prisinter - LV 16 to 63 A and ELV 16 and 32 A - Conform to IEC 60309 - 1 and IEC 60309 - 2 - IP 44 according to IEC 60529 - IK 09 : plastic and rubber - IK 10 : metal according to IEC 62262 - Self - extinguishing : - 850°C (support of active parts) / 960 °C for Prinsinter) - 650 °C : plastic housing conform to IEC 60695 - 2 - 10 - 50°C to + 100°C ( - 20°C for Prisinter) Accessories For LV surface appliance inlet - Box Hypra - For metal surface appliance inlets : - - 380 to 415 V~ 16 A 3P+E - 380 to 415 V~ 16 A 3P+N+E

Zásuvka CEE - 16 A	None
Zásuvka CEE - 32 A	None
Zásuvka CEE - 63 A	None
Zásuvka CEE - 125A	None
Počet zásuvek s ochranným kontaktem (SCHUKO)	0
Jištění	None
Proudový chránič	None
Počet jističů	0
Housing material	Other

2 documents

Select all

Technical Sheet

F00138FR-04.pdf pdf (1.44 Mo)

Technical Sheet

F00138EN-04.pdf pdf (1.25 Mo)
